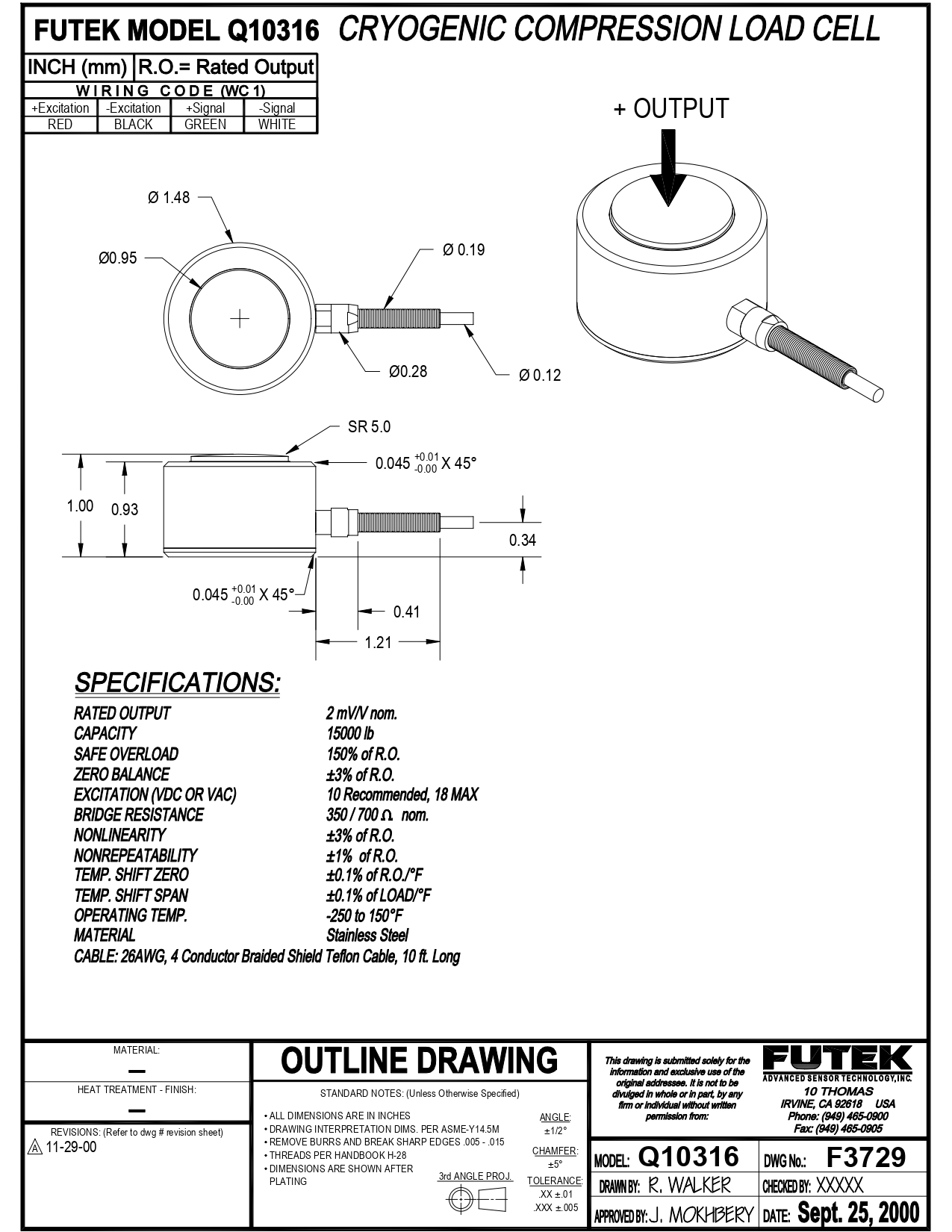

FUTEK QLA171 Cryogenic Compression Load Cell

QLA171 , 15000 lb , Cryogenic Compression Load Cell , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

FUTEK QLA171 Cryogenic Compression Load Cell 이미지

QLA171 , 15000 lb , Cryogenic Compression Load Cell , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

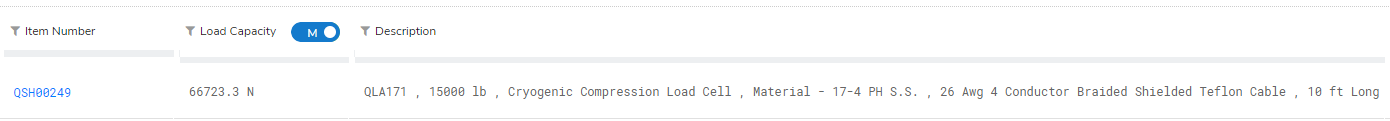

QLA171 , 15000 lb , Cryogenic Compression Load Cell , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

QSH00249

Description

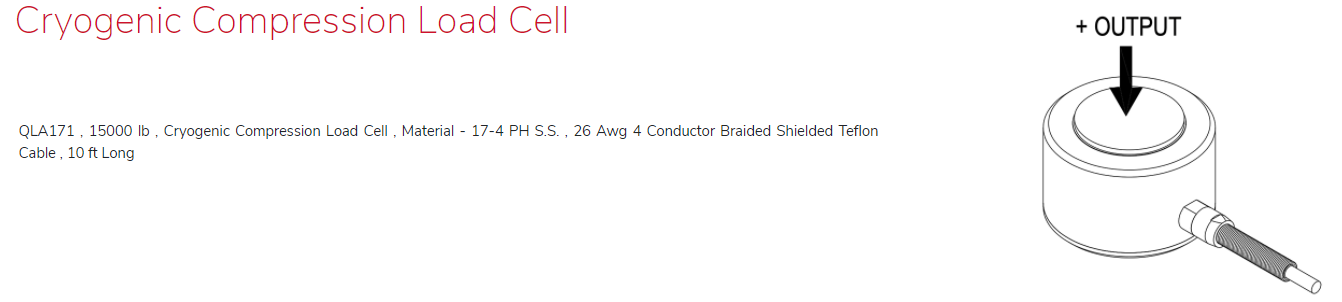

Cryogenic Compression Load Cell

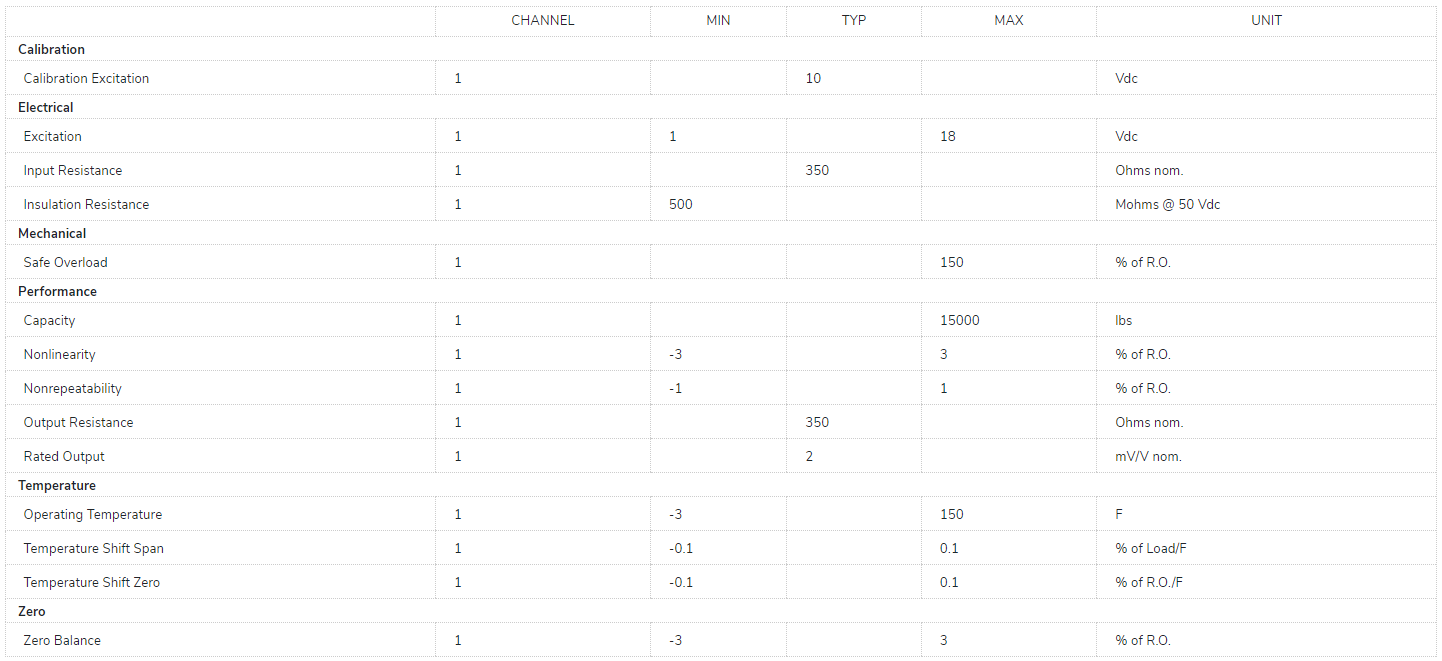

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
