홈/종합산업장비/센서/로드셀/FUTEK QLA167 Compression Gram Load Cell (No Amplifier Included)

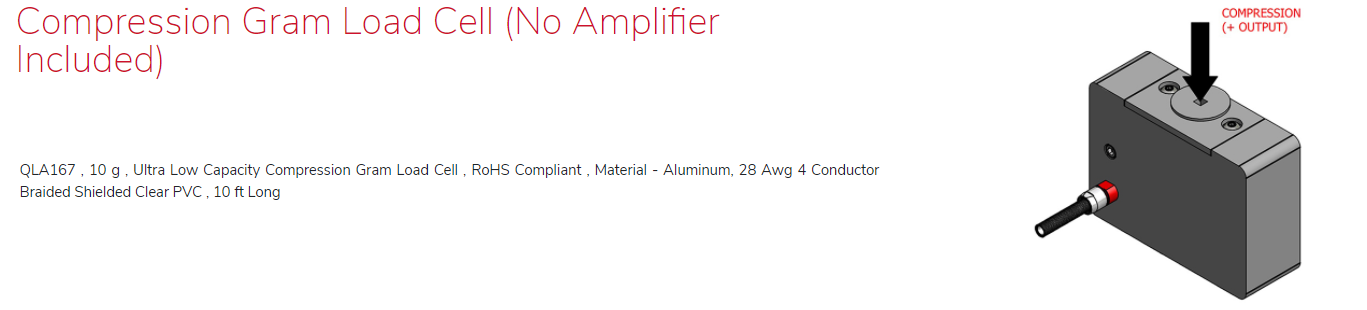

FUTEK QLA167 Compression Gram Load Cell (No Amplifier Included)

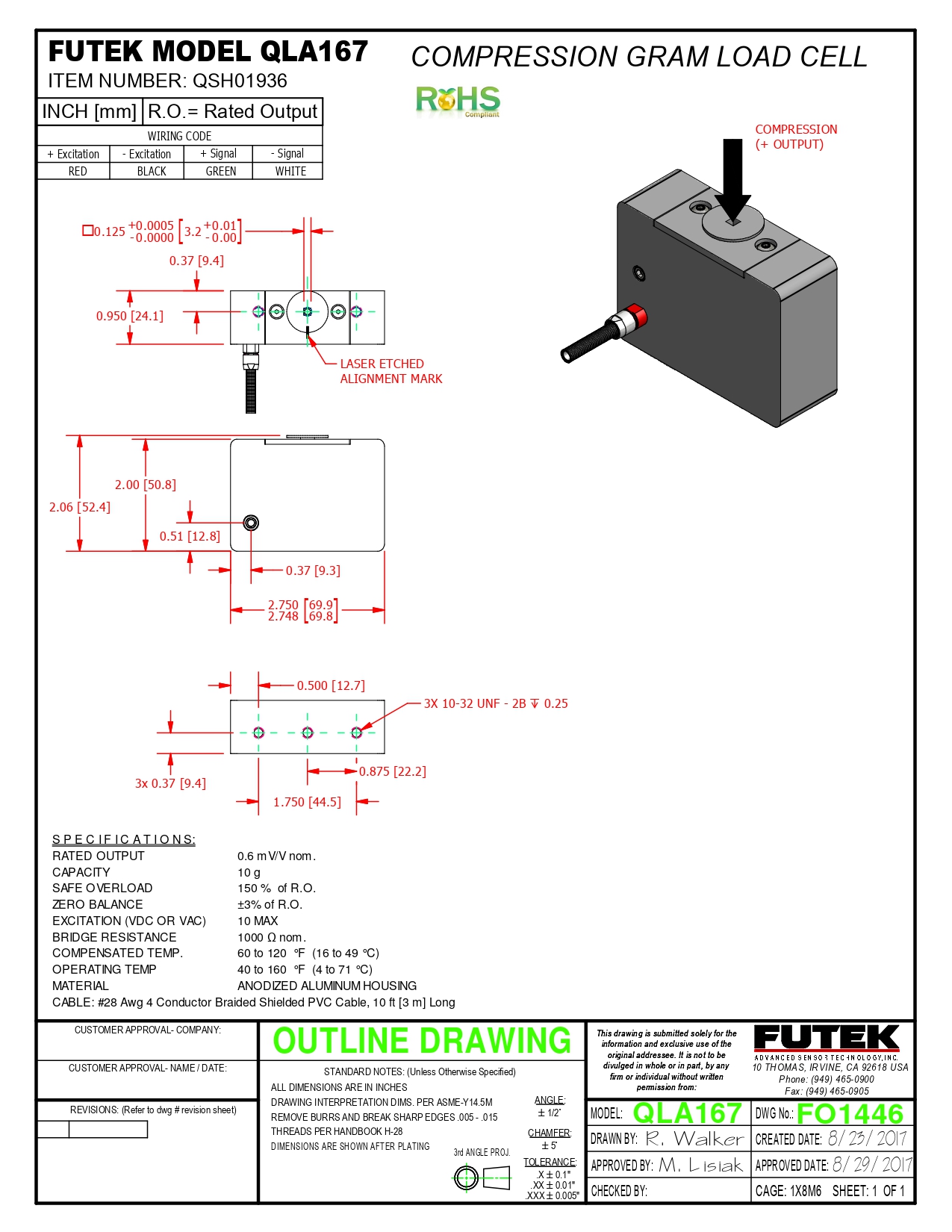

QLA167 , 10 g , Ultra Low Capacity Compression Gram Load Cell , RoHS Compliant , Material - Aluminum, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

FUTEK QLA167 Compression Gram Load Cell (No Amplifier Included) 이미지

QLA167 , 10 g , Ultra Low Capacity Compression Gram Load Cell , RoHS Compliant , Material - Aluminum, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA167 , 10 g , Ultra Low Capacity Compression Gram Load Cell , RoHS Compliant , Material - Aluminum, 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

QSH01936

Description

Ultra Low Capacity Compression Gram Load Cell

Features

Milligram Resolution
Axial Overload Protection
Resistant to Side Loads
Integrated Cable with Mechanical Strain Relief

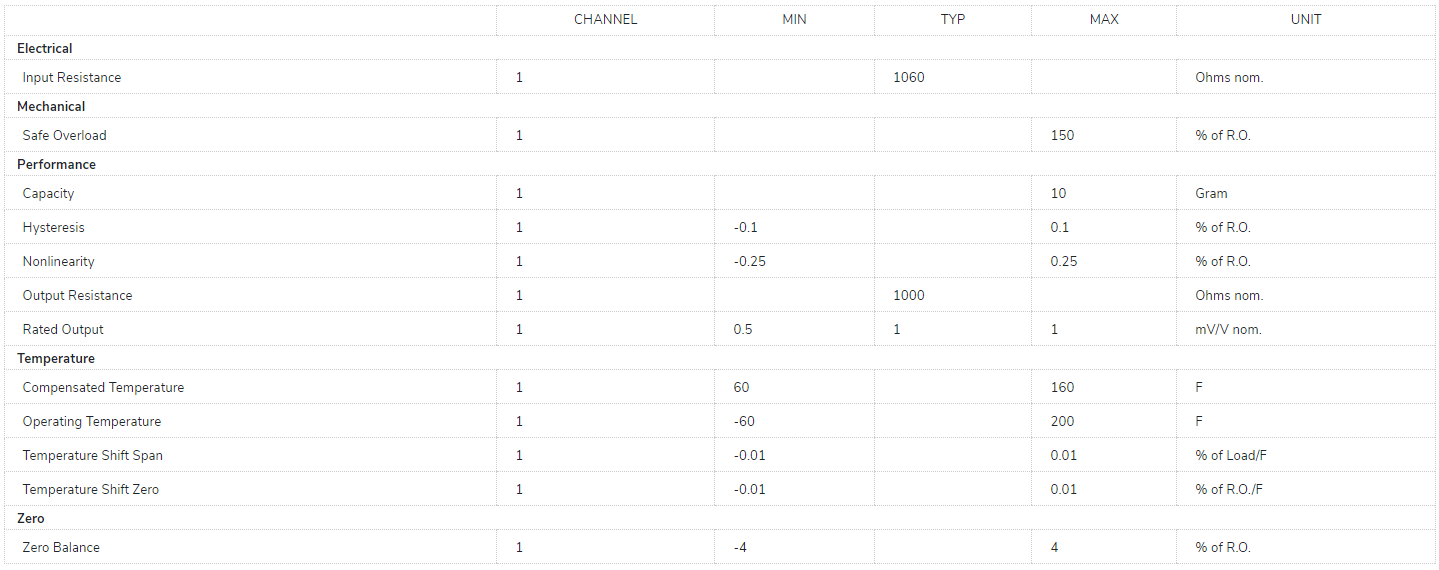

Specifications
