홈/종합산업장비/센서/로드셀/FUTEK QLA208 Collet Force Sensor w/ Display

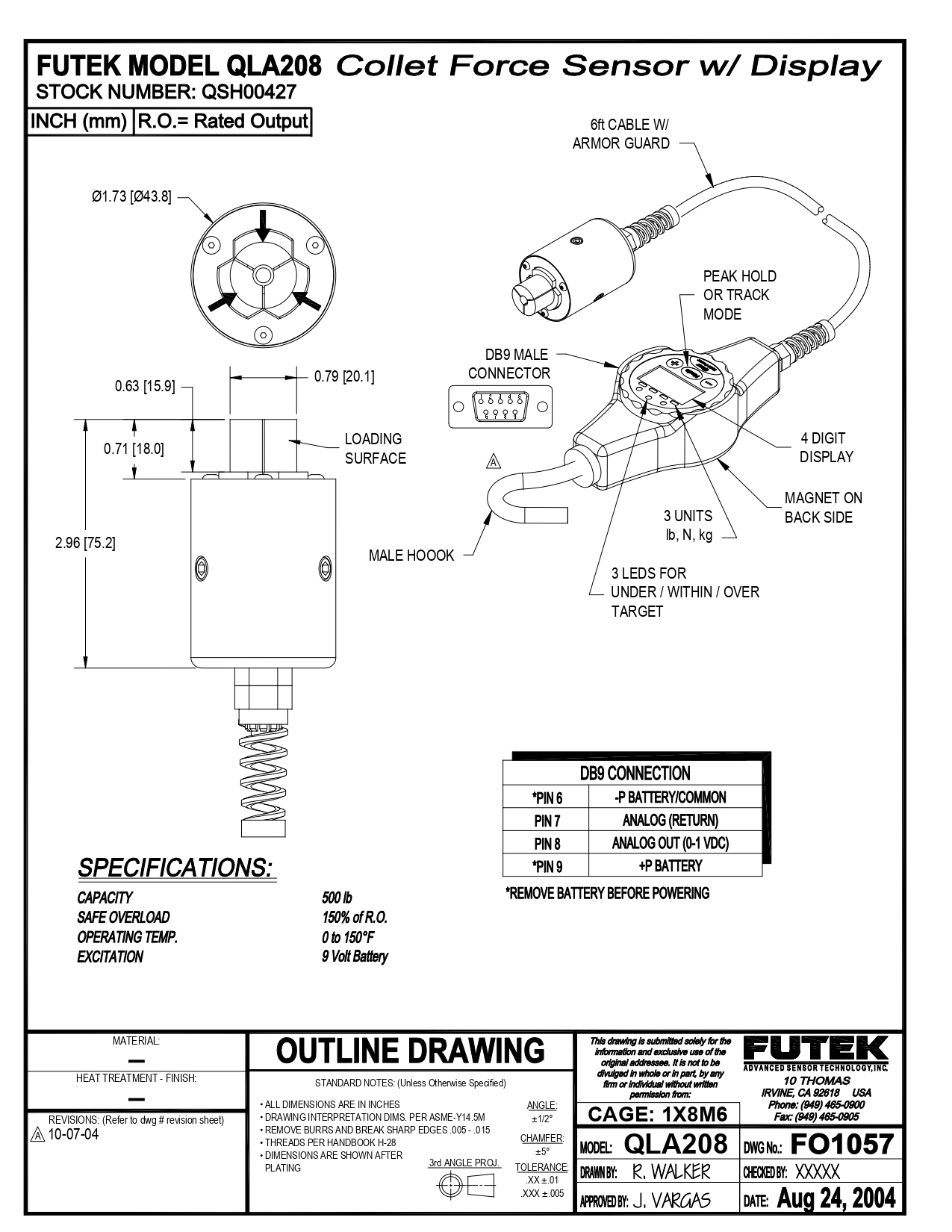

FUTEK QLA208 Collet Force Sensor w/ Display

QLA208 , 500 lb , Collet Force , Pinch Sensor w/ Display , 0.79" [20.1 mm] OD , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 6 ft Long w/ Armor Guard Housing

FUTEK QLA208 Collet Force Sensor w/ Display 이미지

QLA208 , 500 lb , Collet Force , Pinch Sensor w/ Display , 0.79" [20.1 mm] OD , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 6 ft Long w/ Armor Guard Housing

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA208 , 500 lb , Collet Force , Pinch Sensor w/ Display , 0.79" [20.1 mm] OD , Material - 17-4 PH S.S. , 28 Awg 6 Conductor Shielded Polyurethane Cable , 6 ft Long w/ Armor Guard Housing

QSH00427

Description

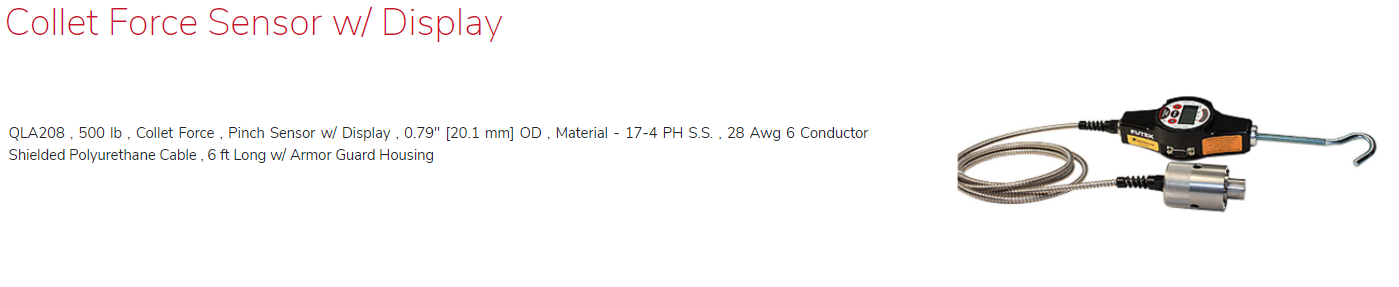

Collet Force Sensor with Display

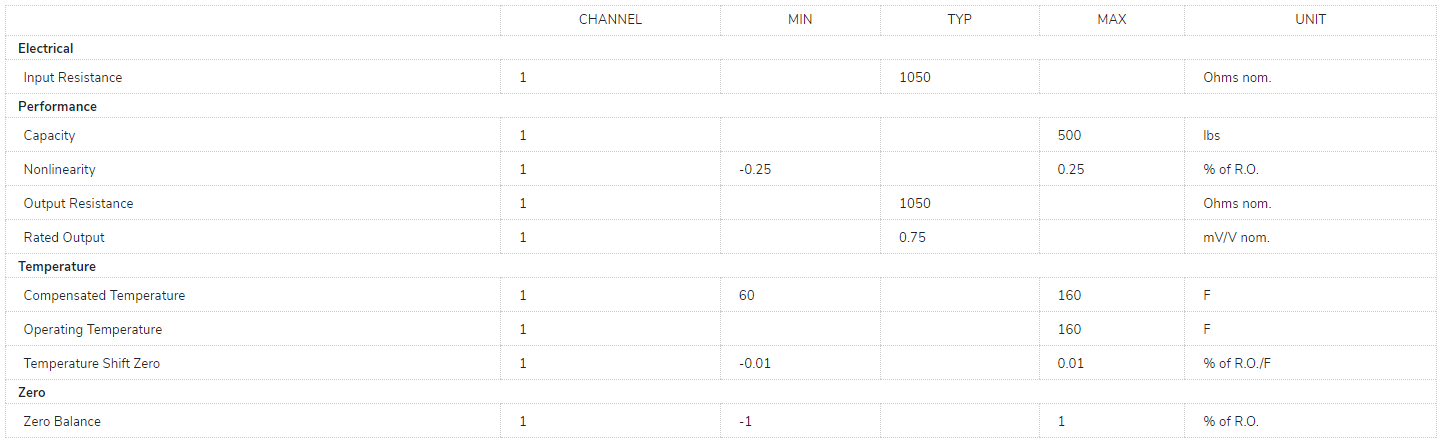

Specifications
