홈/종합산업장비/센서/로드셀/FUTEK QLA340 Collet Force Measuring Sensor

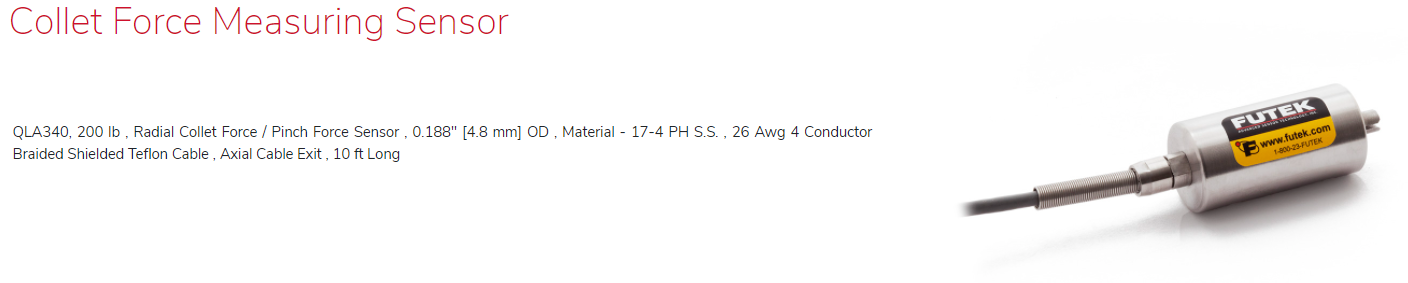

FUTEK QLA340 Collet Force Measuring Sensor

QLA340, 200 lb , Radial Collet Force / Pinch Force Sensor , 0.188" [4.8 mm] OD , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , Axial Cable Exit , 10 ft Long

FUTEK QLA340 Collet Force Measuring Sensor 이미지

QLA340, 200 lb , Radial Collet Force / Pinch Force Sensor , 0.188" [4.8 mm] OD , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , Axial Cable Exit , 10 ft Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA340, 200 lb , Radial Collet Force / Pinch Force Sensor , 0.188" [4.8 mm] OD , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , Axial Cable Exit , 10 ft Long

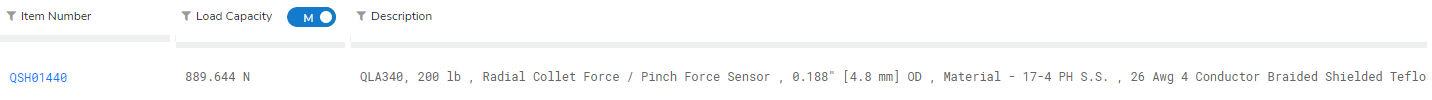

QSH01440

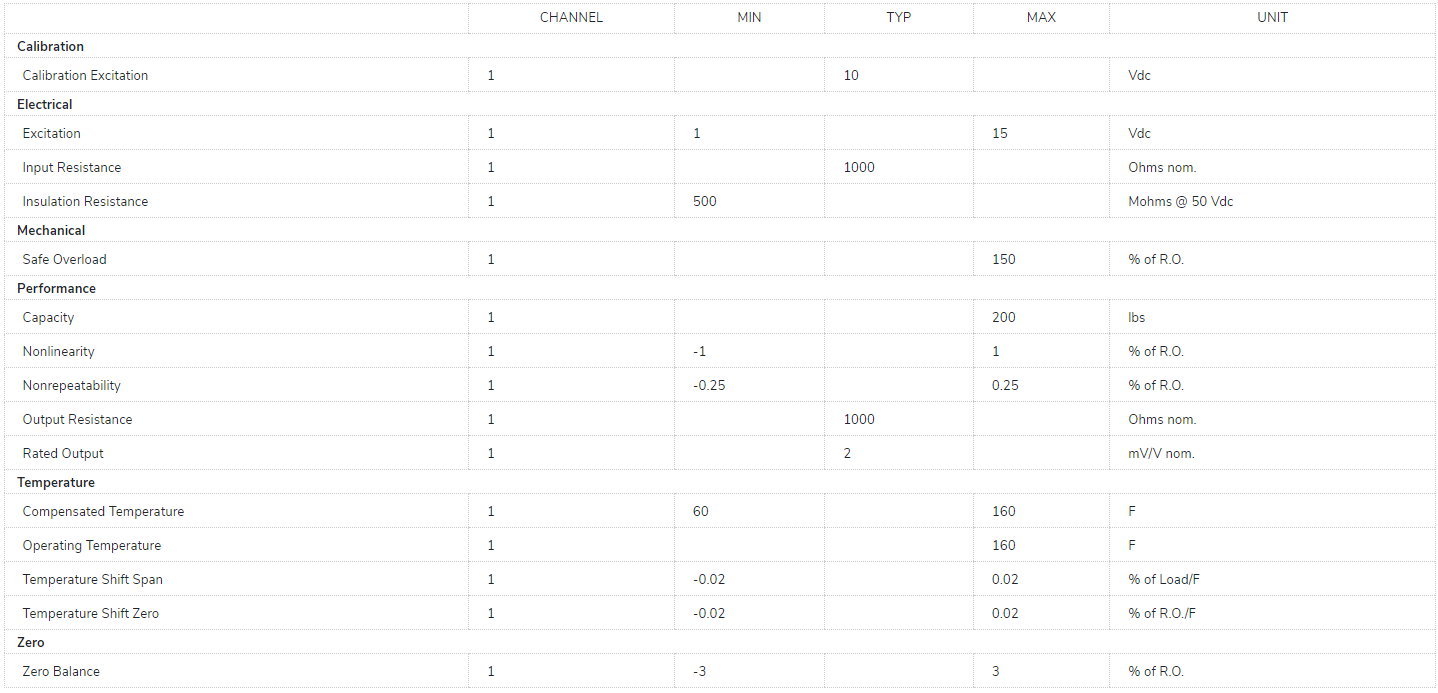

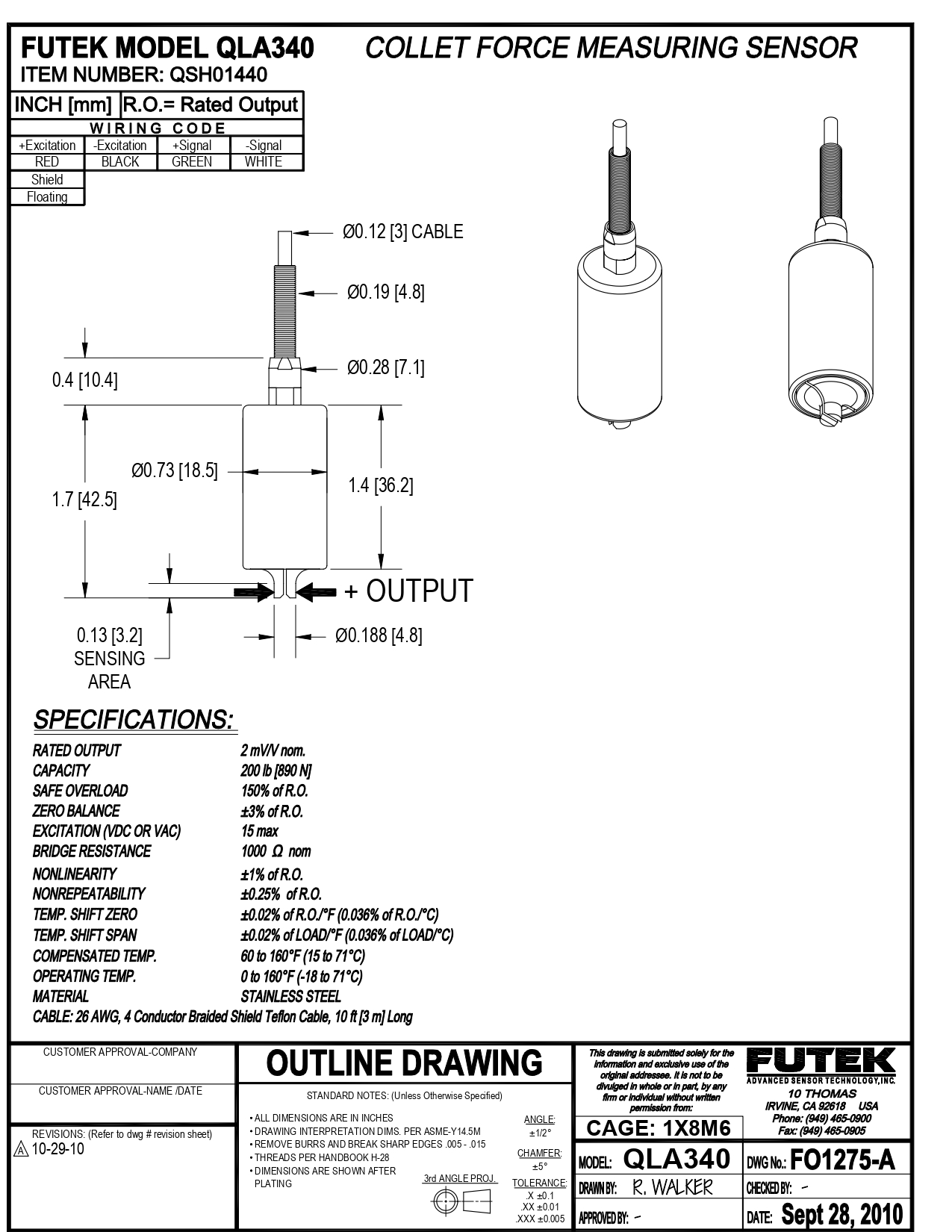

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
