홈/종합산업장비/센서/로드셀/FUTEK QLA276 2 Prong Collet Sensor

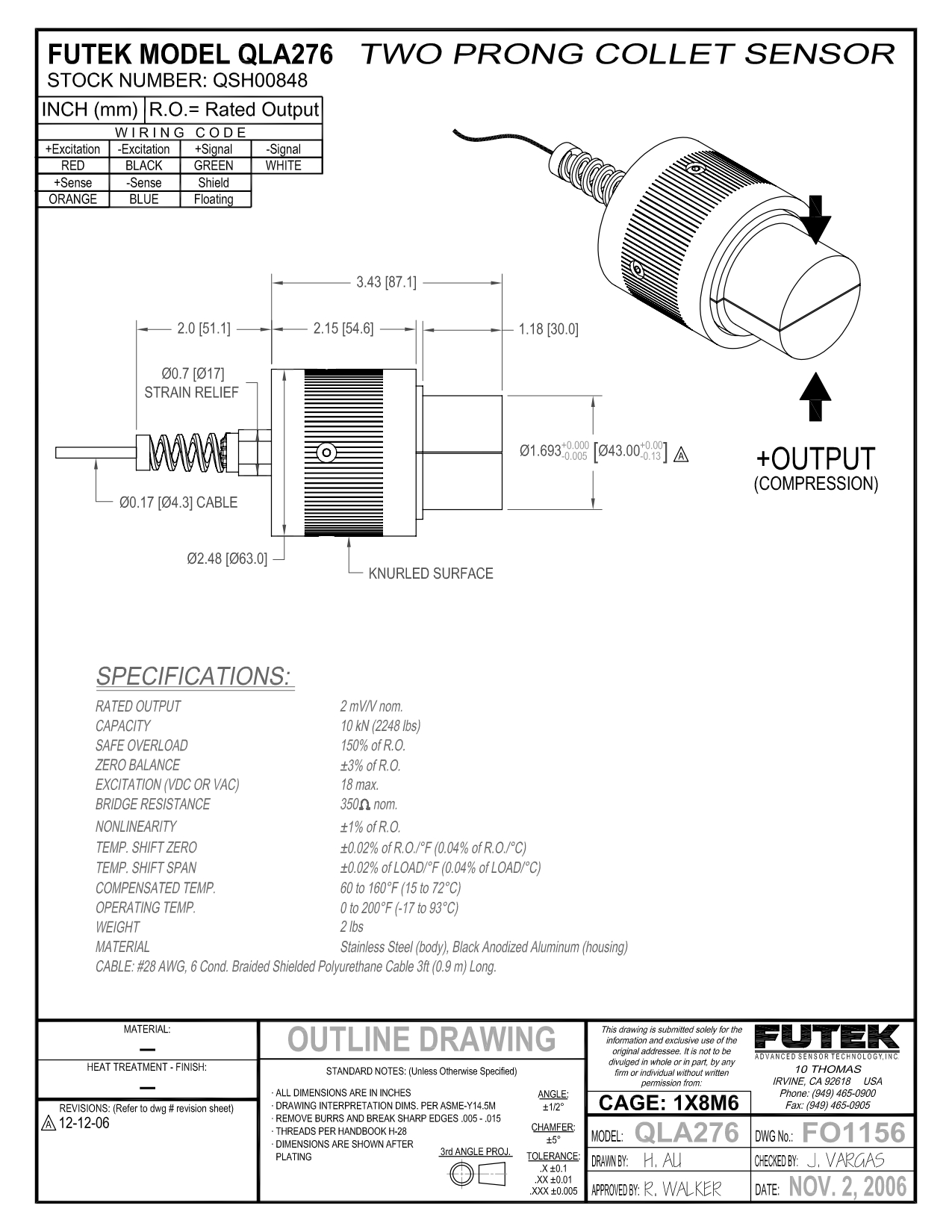

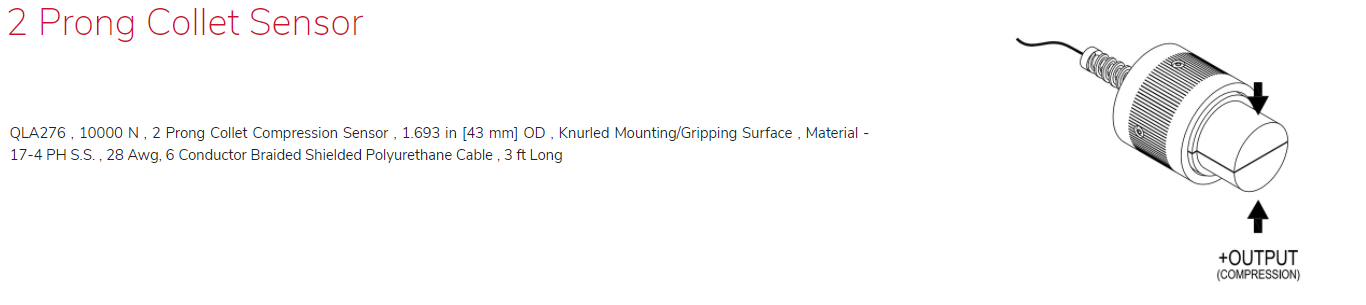

FUTEK QLA276 2 Prong Collet Sensor

QLA276 , 10000 N , 2 Prong Collet Compression Sensor , 1.693 in [43 mm] OD , Knurled Mounting/Gripping Surface , Material - 17-4 PH S.S. , 28 Awg, 6 Conductor Braided Shielded Polyurethane Cable , 3 ft Long

FUTEK QLA276 2 Prong Collet Sensor 이미지

QLA276 , 10000 N , 2 Prong Collet Compression Sensor , 1.693 in [43 mm] OD , Knurled Mounting/Gripping Surface , Material - 17-4 PH S.S. , 28 Awg, 6 Conductor Braided Shielded Polyurethane Cable , 3 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA276 , 10000 N , 2 Prong Collet Compression Sensor , 1.693 in [43 mm] OD , Knurled Mounting/Gripping Surface , Material - 17-4 PH S.S. , 28 Awg, 6 Conductor Braided Shielded Polyurethane Cable , 3 ft Long

QSH00848

Specifications
