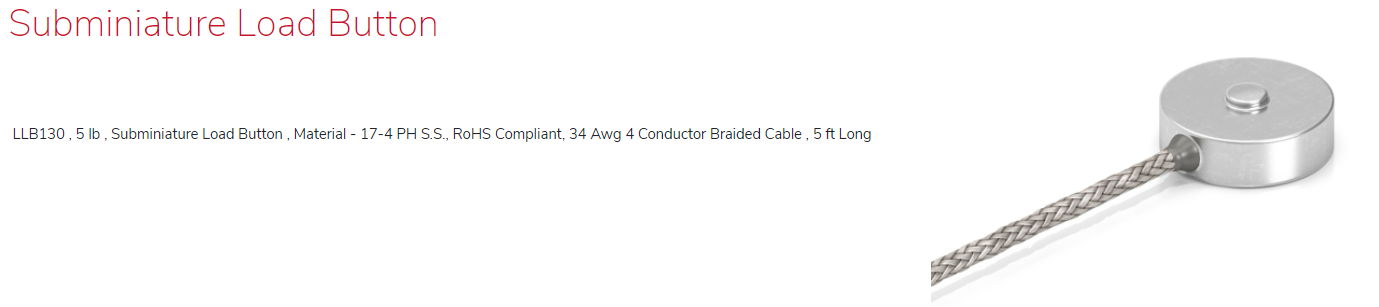

LLB130 , 5 lb , Subminiature Load Button , Material - 17-4 PH S.S., RoHS Compliant, 34 Awg 4 Conductor Braided Cable , 5 ft Long
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LLB130 , 5 lb , Subminiature Load Button , Material - 17-4 PH S.S., RoHS Compliant, 34 Awg 4 Conductor Braided Cable , 5 ft Long

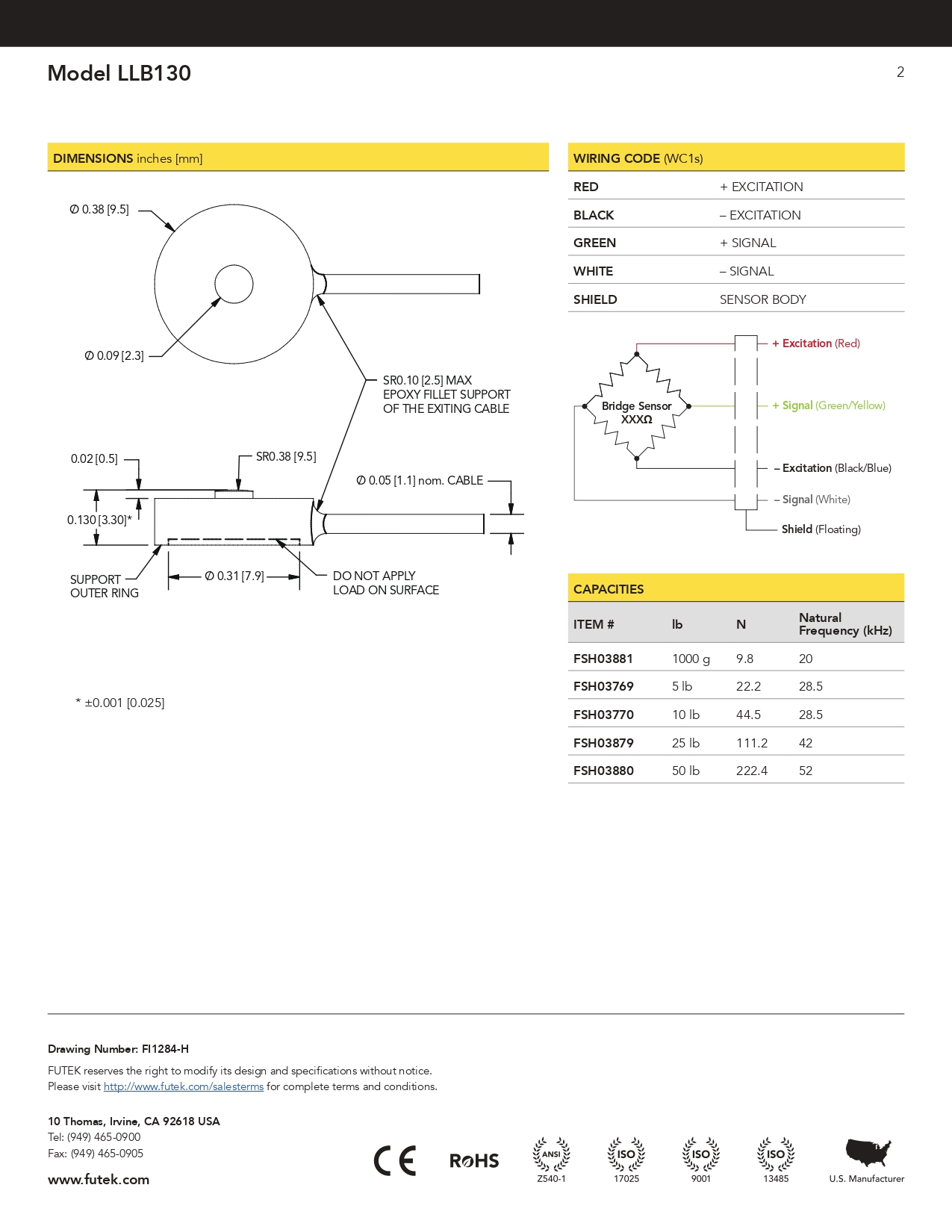

Miniature Load Button Load Cell (LLB130) | Dimensions and Design Features

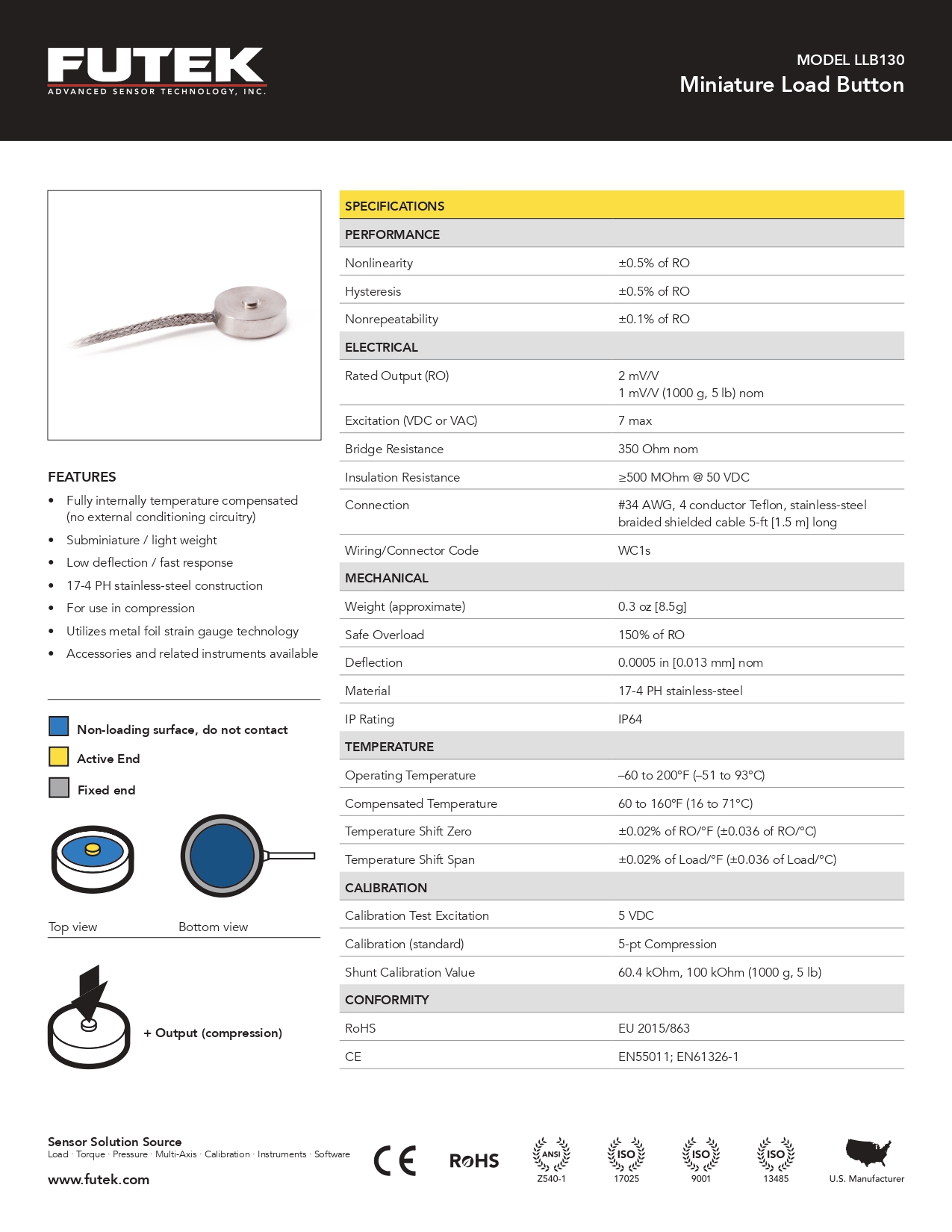

Sub Miniature Load Button Load Cell (LLB130) | Specs and Applications

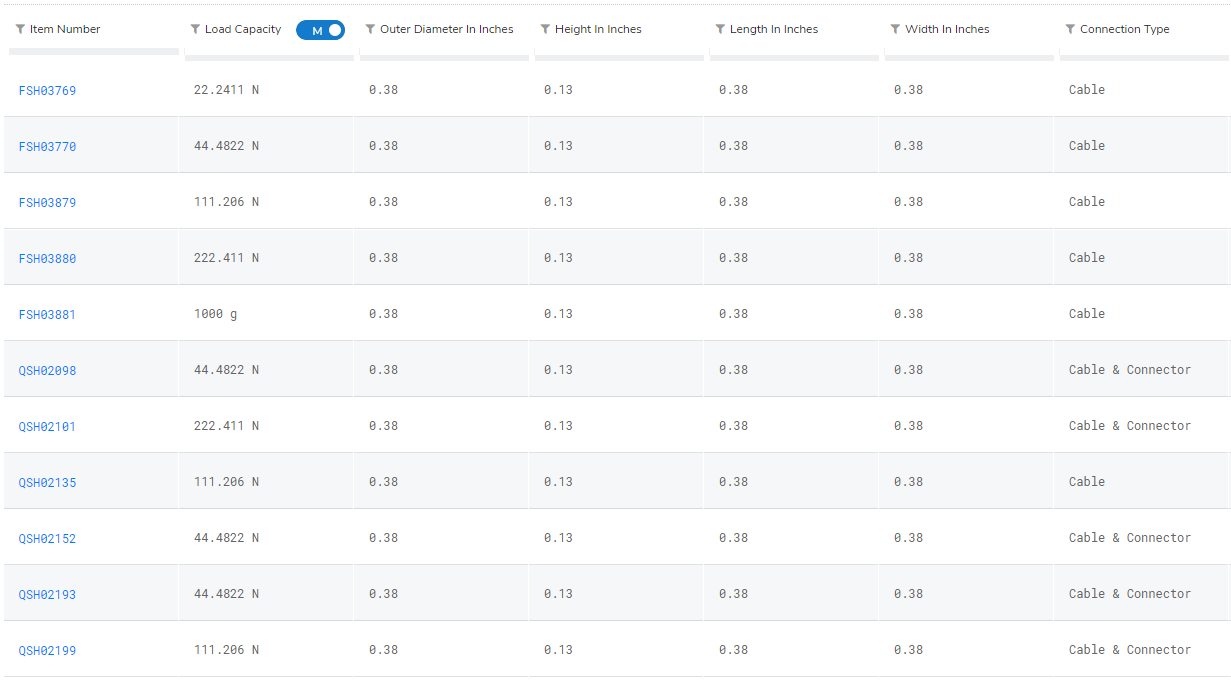

FSH03770
FSH03879
FSH03880
FSH03881
QSH02098
QSH02101
QSH02135
QSH02152
QSH02193
QSH02199
Description
Model LLB130 is a Miniature Load Button designed for Press, or Inline compression applications. The LLB130 Miniature Load Button model is made from a robust 17-4 PH Stainless Steel, with a subminiature 0.38 inch outside diameter.
Although Subminiature Load Button are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. These load cells achieve great accuracy and stiffness with a Nonlinearity of ±0.5% and Deflection of 0.002” nominal. You will also find options for external matched output readily available.
The standard LLB130 Miniature Load Button can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.
If you are looking for a miniature S Beam Load cell, check out the new LSB201 micro force sensor.
Features
- Fully internally temperature compensated (no external conditioning circuitry)
- Sub-miniature load cell / light weight
- Low deflection / fast response
- 17-4 PH stainless-steel construction
- For use in compression
- Utilizes metal foil strain gauge technology
- Adheres to RoHS directive 2015/863/EU
- Accessories and related instruments available

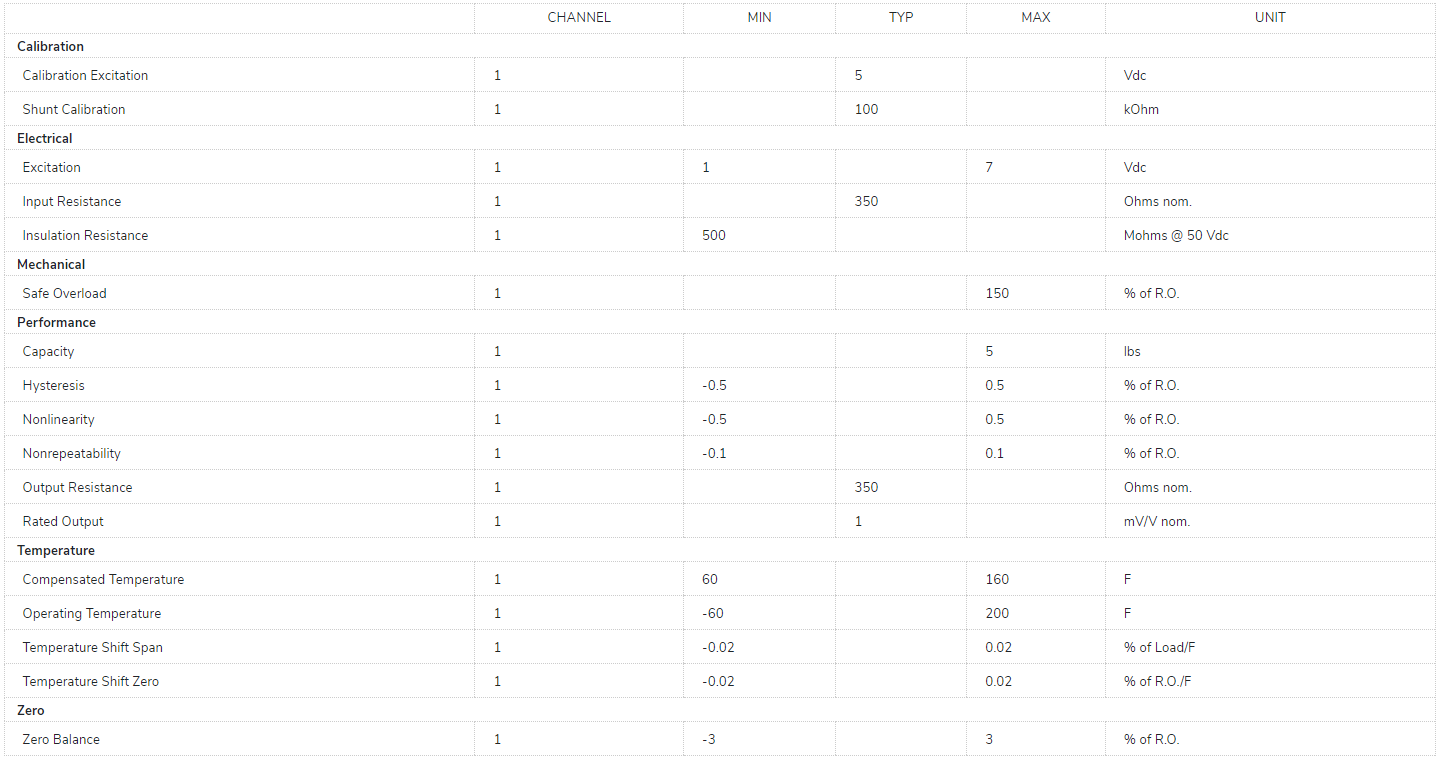

Specifications
