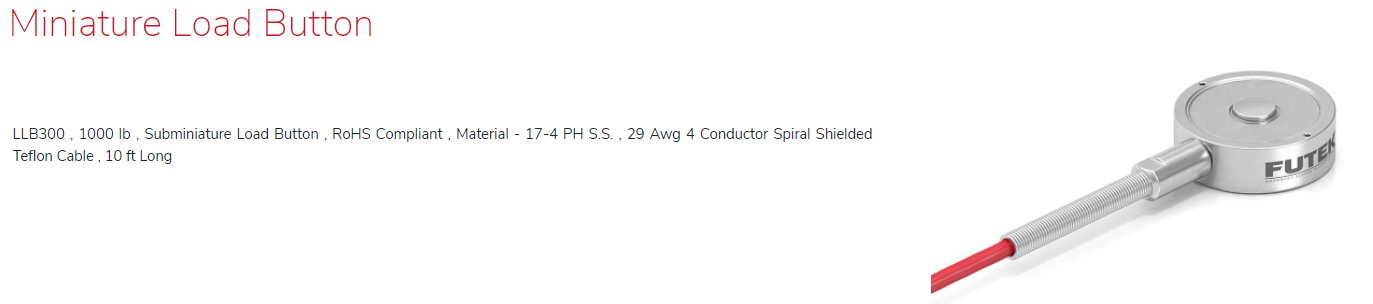

LLB300 , 1000 lb , Subminiature Load Button , RoHS Compliant , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LLB300 , 1000 lb , Subminiature Load Button , RoHS Compliant , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long

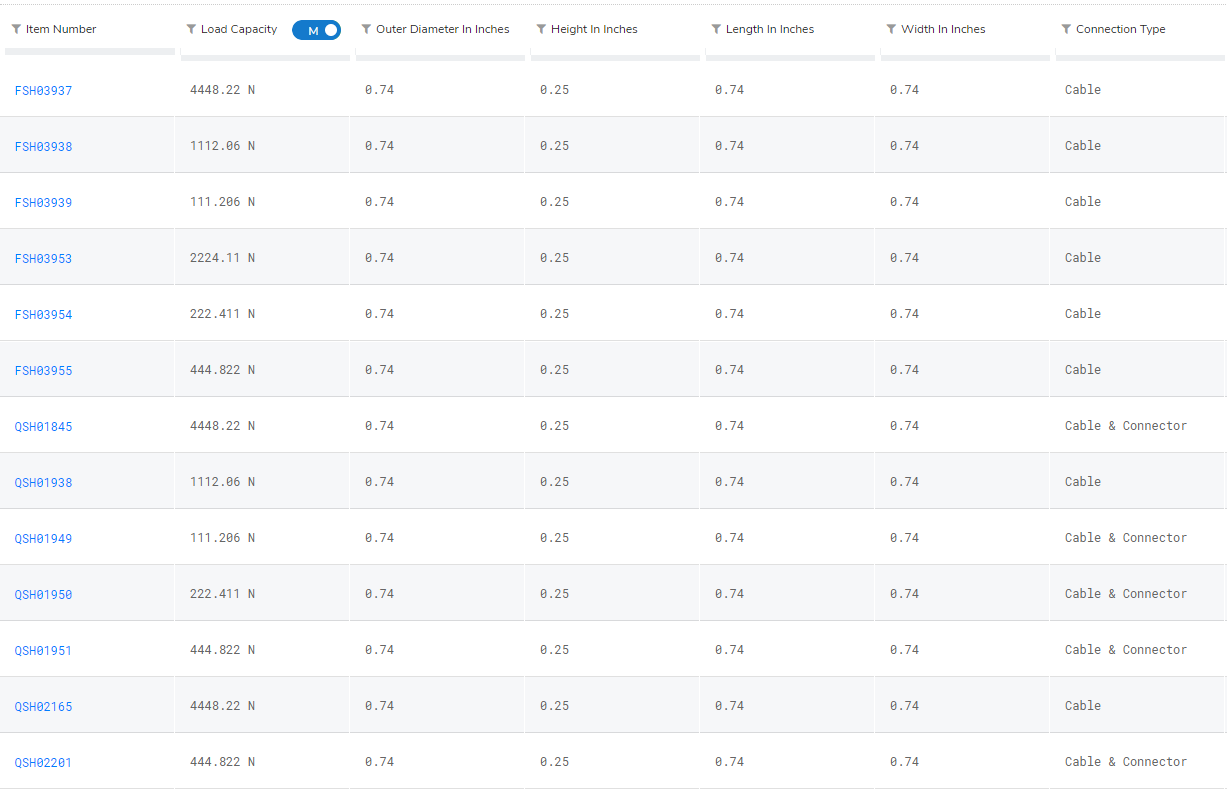

FSH03937
FSH03938
FSH03939
FSH03953
FSH03954
FSH03955
QSH01845
QSH01938
QSH01949
QSH01950
QSH01951
QSH02165
QSH02201
Description

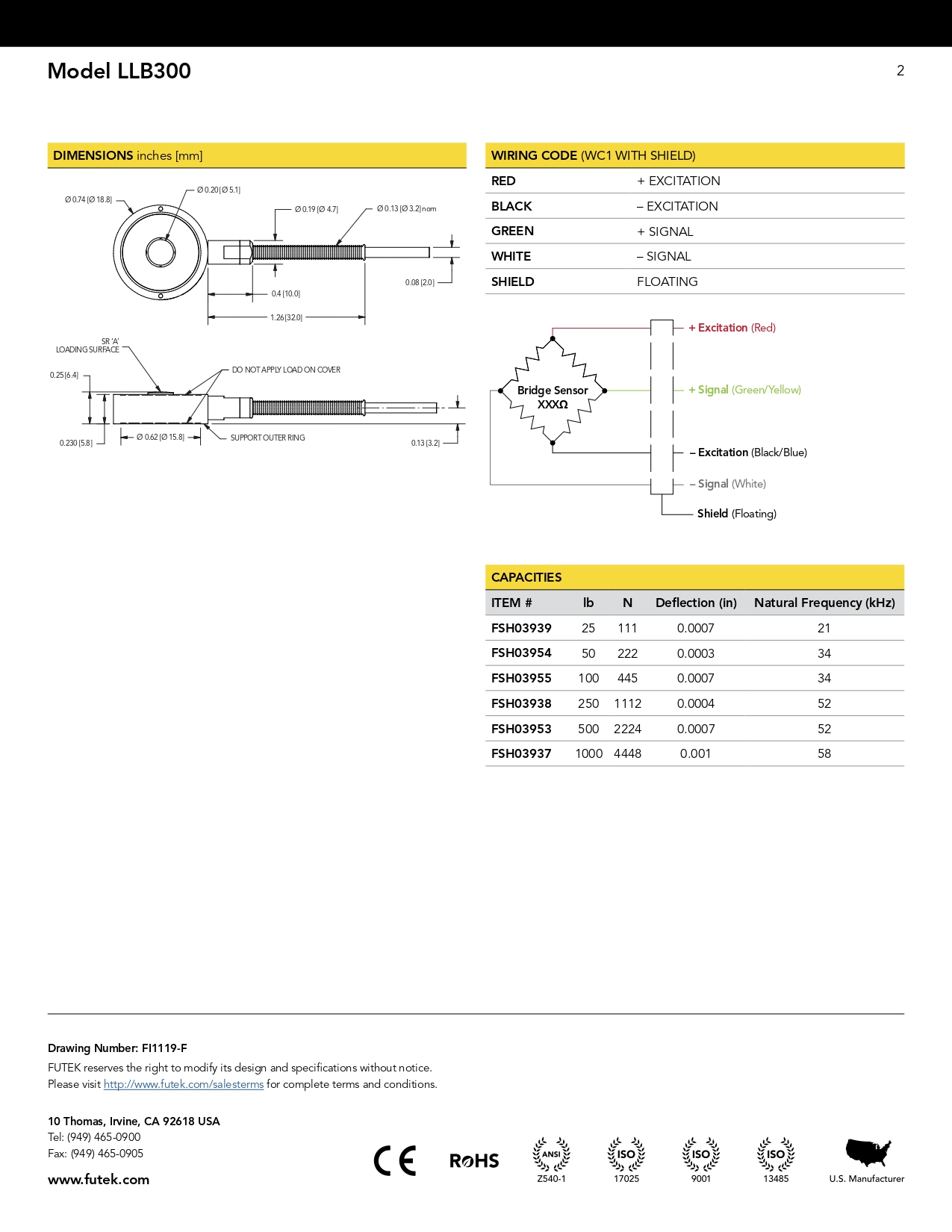

Model LLB300 is a Miniature Load Button built for Press, or Inline compression applications. The standard LLB300 Miniature Load Button model has a very robust construction available in 17-4 Stainless Steel, with a 0.74” outside diameter and a 10 feet long 29 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

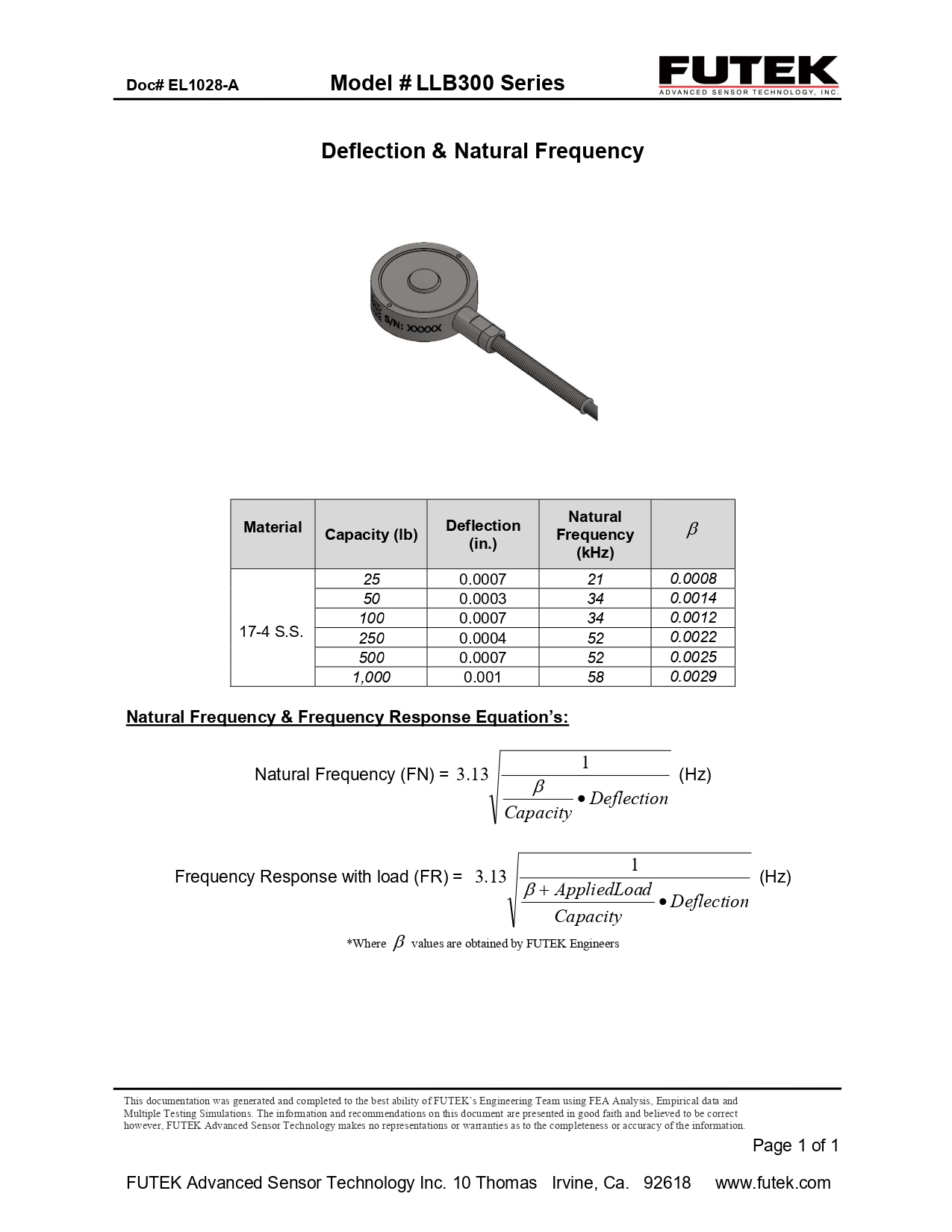

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Miniature Load Button offers high accuracy and high stiffness. It has Nonlinearity of ±0.2% and Deflection of 0.002” nominal. The standard LLB300 Miniature Load Button can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.
Features
- Ultra fast response
- Robust strain relief
- Low deflection load button load cell
- 17-4 stainless-steel construction
- For use in compression
- Adheres to RoHS directive 2015/863/EU

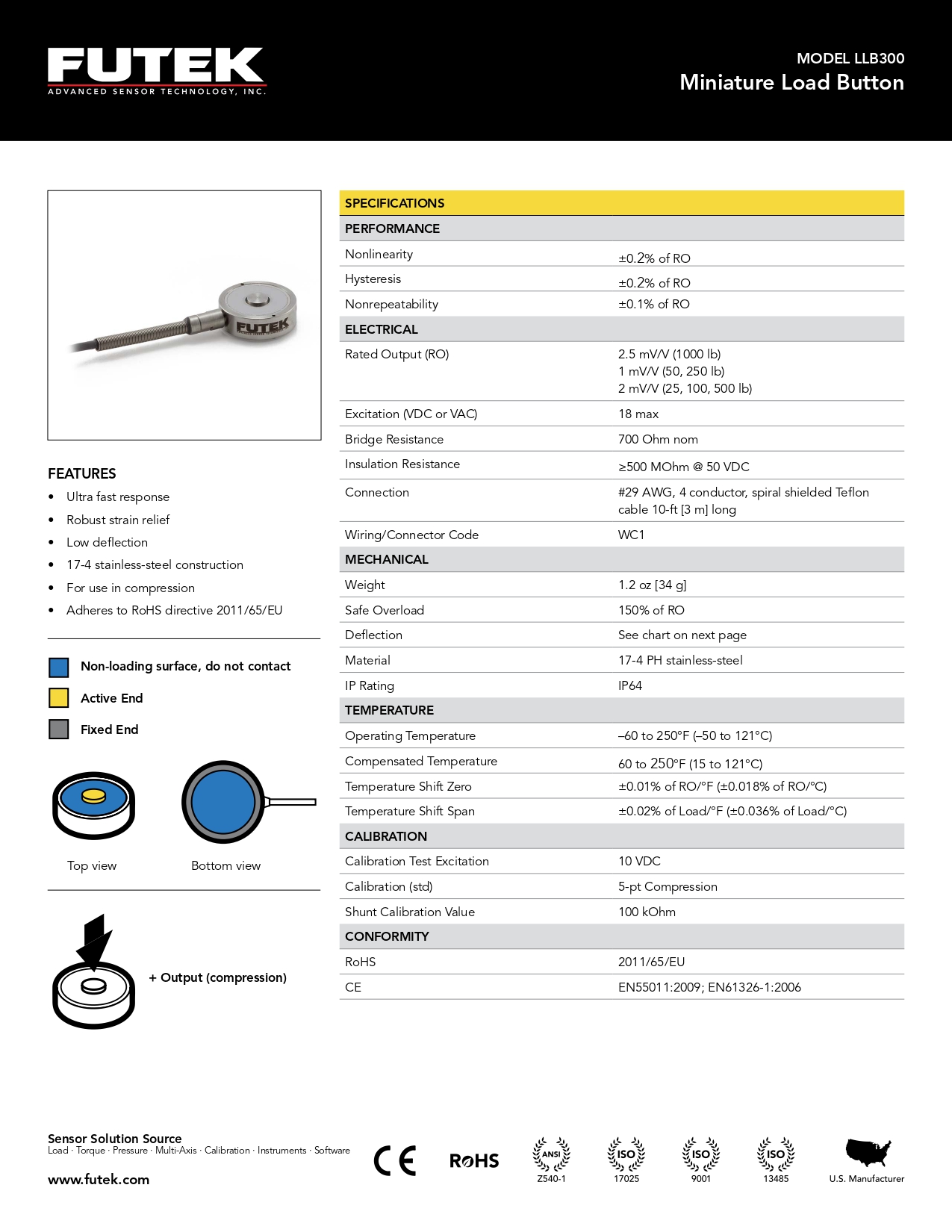

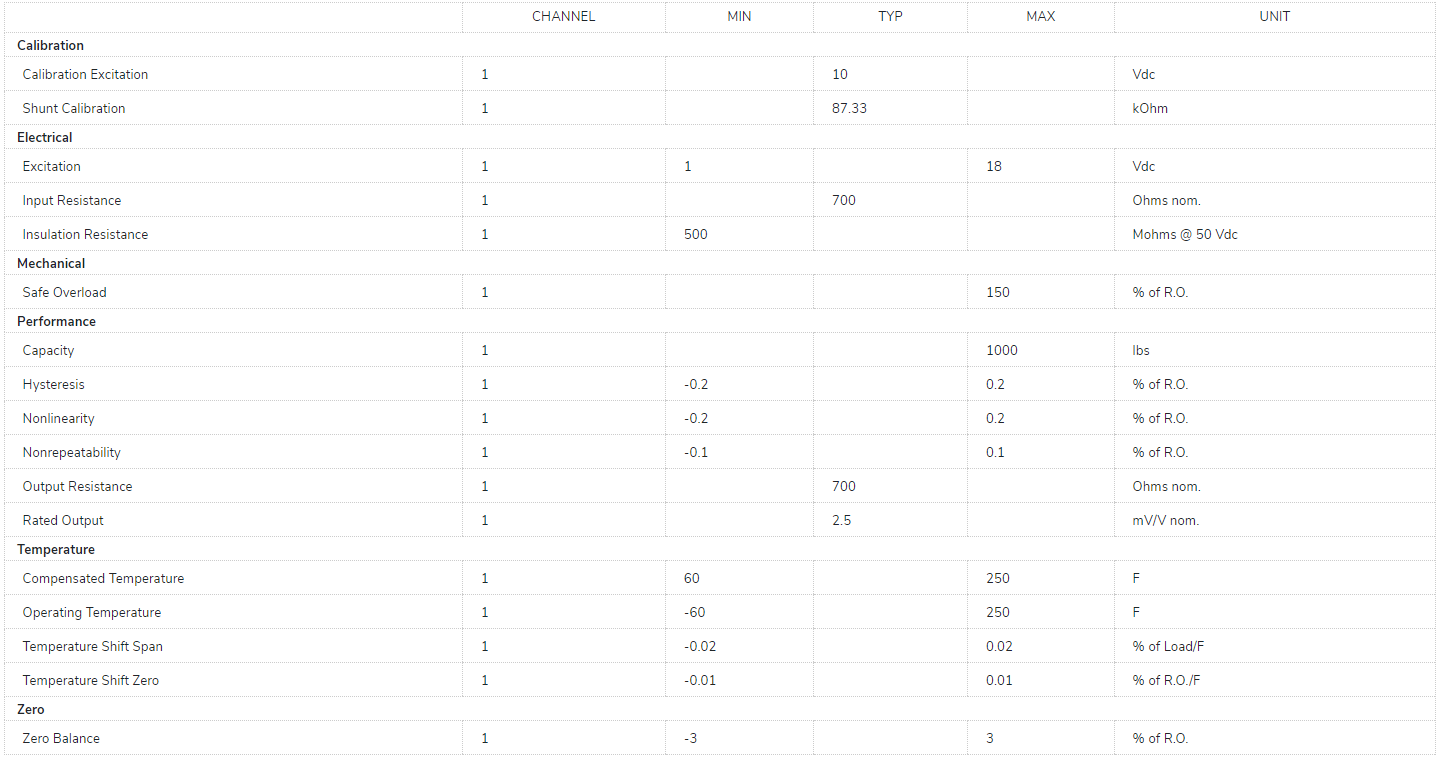

Specifications
