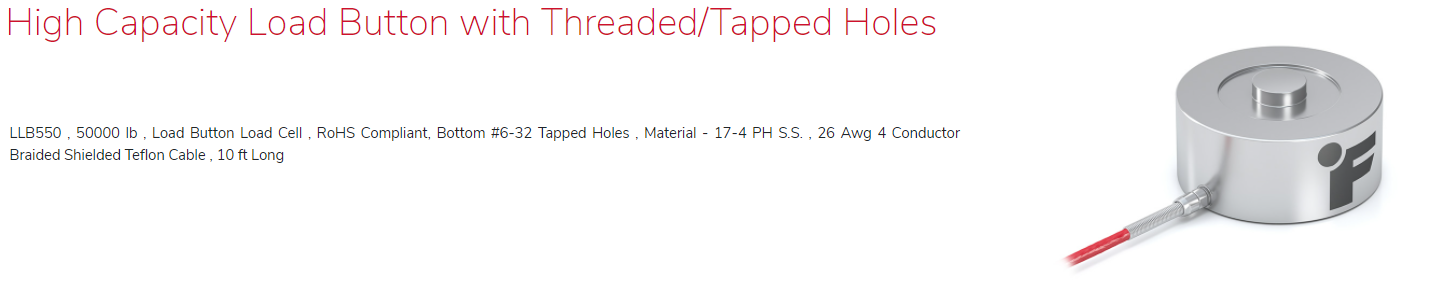

FUTEK LLB550 High Capacity Load Button with Threaded/Tapped Holes

LLB550 , 50000 lb , Load Button Load Cell , RoHS Compliant, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

FUTEK LLB550 High Capacity Load Button with Threaded/Tapped Holes 이미지

LLB550 , 50000 lb , Load Button Load Cell , RoHS Compliant, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

LLB550 , 50000 lb , Load Button Load Cell , RoHS Compliant, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

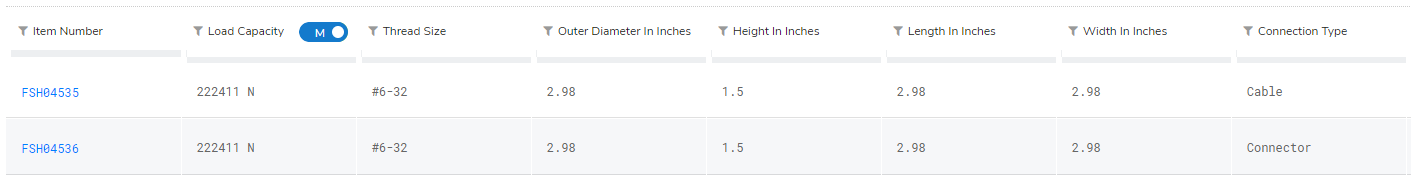

FSH04535

FSH04536

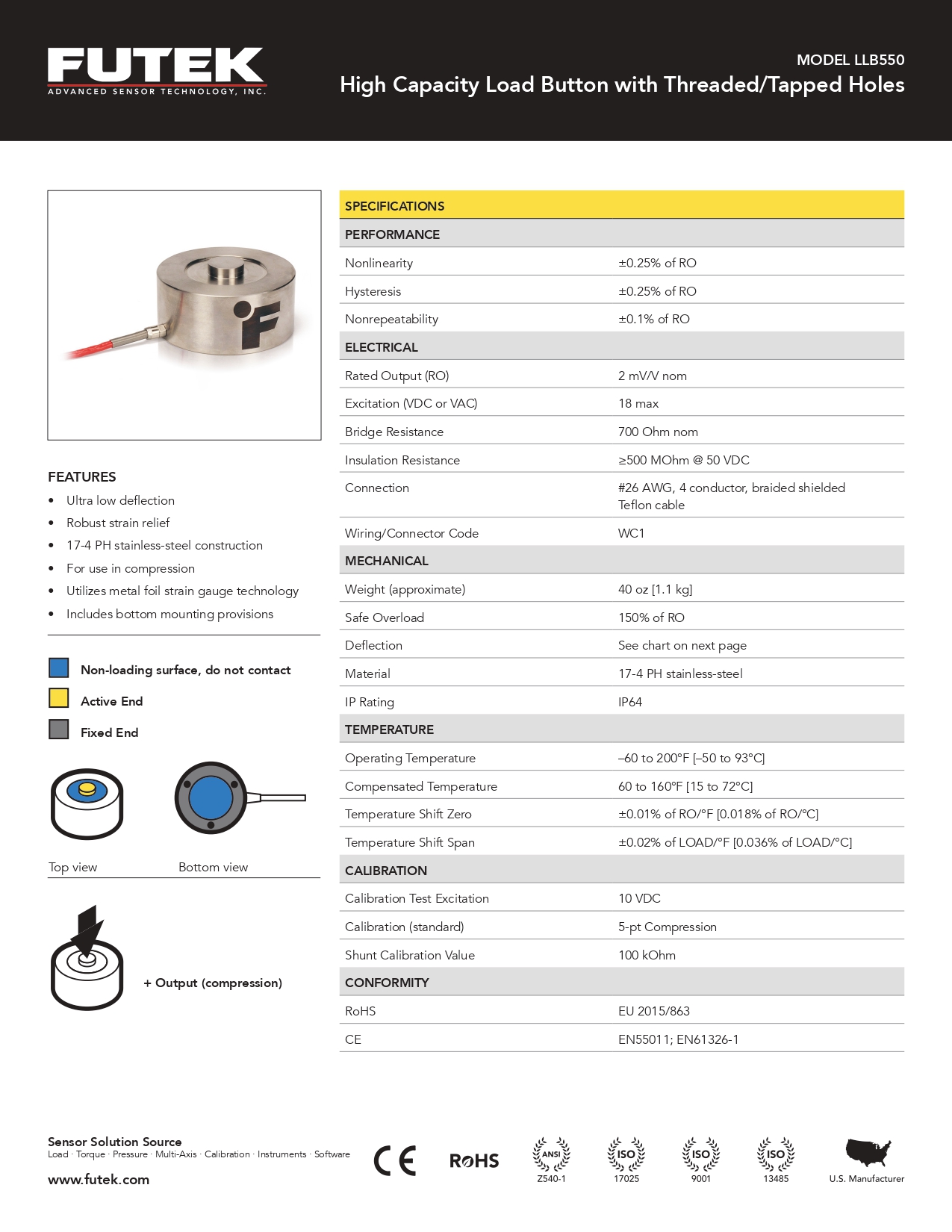

Description

Model LLB550 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB550 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 3.0” outside diameter and a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.The Miniature Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The standard LLB550 Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping.

Features

  • Ultra low deflection
  • Robust strain relief
  • 17-4 PH stainless-steel construction
  • For use in compression
  • Utilizes metal foil strain gauge technology
  • Includes bottom mounting provisions

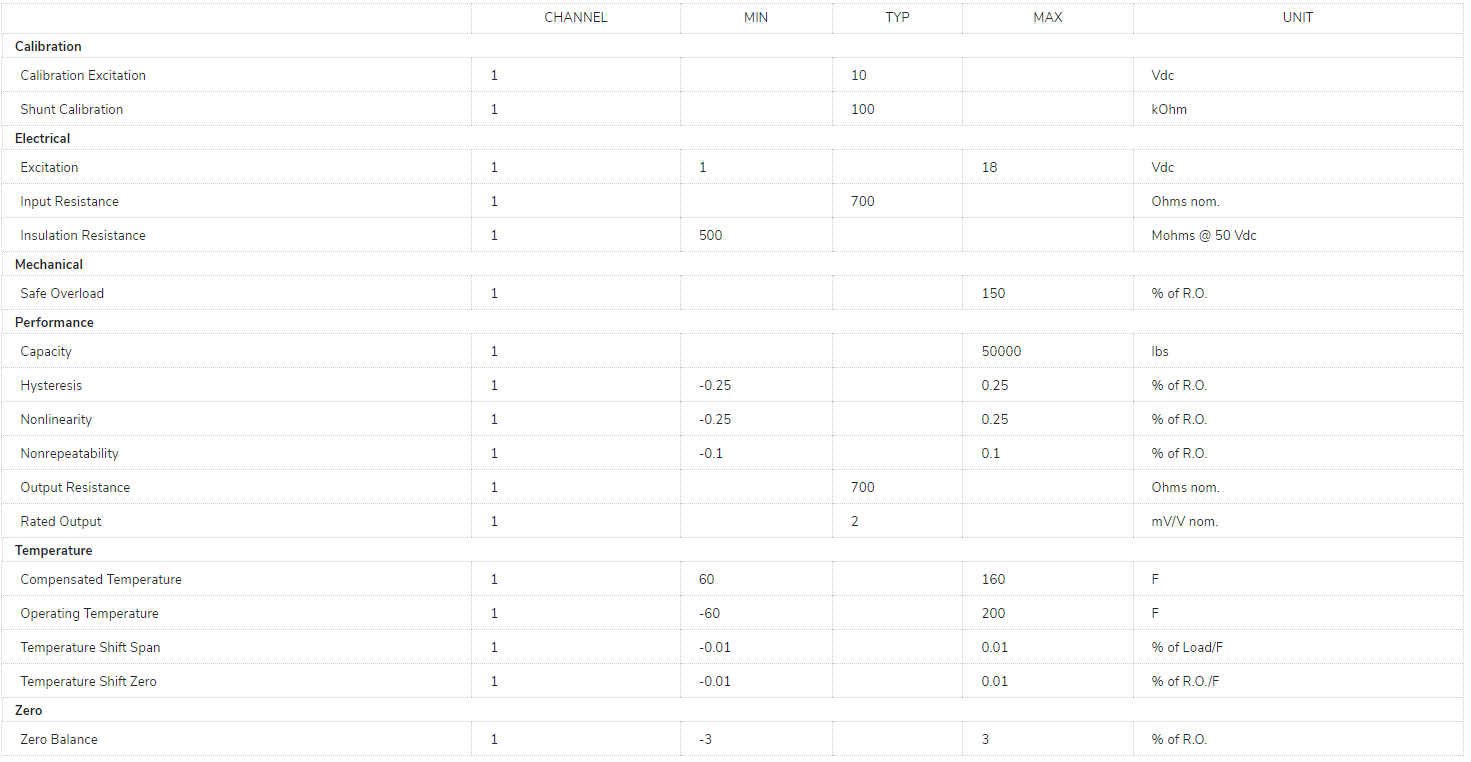

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
