FUTEK FFP350 Flat Plate Force Sensor

FFP350 , 1 lb , Flat Plate Force Sensor , OEM , Material - 300 Series S.S. , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

FUTEK FFP350 Flat Plate Force Sensor 이미지

FFP350 , 1 lb , Flat Plate Force Sensor , OEM , Material - 300 Series S.S. , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

FFP350 , 1 lb , Flat Plate Force Sensor , OEM , Material - 300 Series S.S. , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

FSH01527

Description

FUTEK’s FFP350 Force Sensor is designed for measuring force, surface pressure, and displacement. These sensors are a cost effective and reliable OEM solution for high volume applications. The FFP350 Force Sensor incorporates the balancing, compensating and conductive elements into its strain gauge which is laminated on to the 300-Stainless Steel flexure. With its thin, miniature design, the FFP350 Force Sensor is also useful in applications where vertical space is limited. It is available in a 1 lb capacity and it is ideal for use in process control, medical instrumentation, robotics, and automotive applications. The FFP350 Force Sensor is manufactured in USA.

FFP350 Flat Plate Force Sensor is also used in semiconductor supply chain management systems for weighing / tracking of parts for inventory management.

Features

  • Designed for OEM use
  • High Volume force measurement Applications
  • Light Weight: 10 g
  • Low Cost Force Sensor

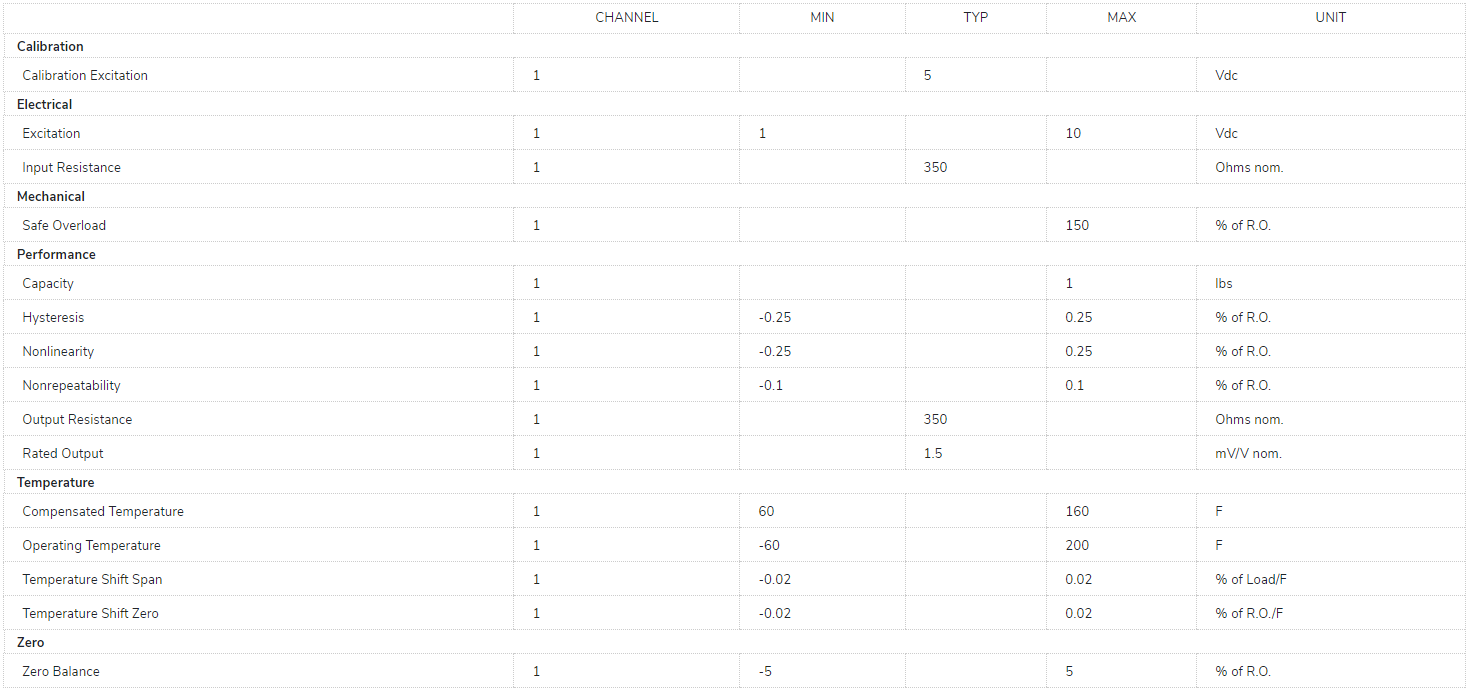

Specifications
