FUTEK MBA400 Biaxial Load Cell

MBA400 , Ch Fx: 50 lb; Ch Fy: 50 lb , Bi-Axial Load Arm , RoHS Compliant, Material - 17-4 PH S.S. , #8-32 Threads , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

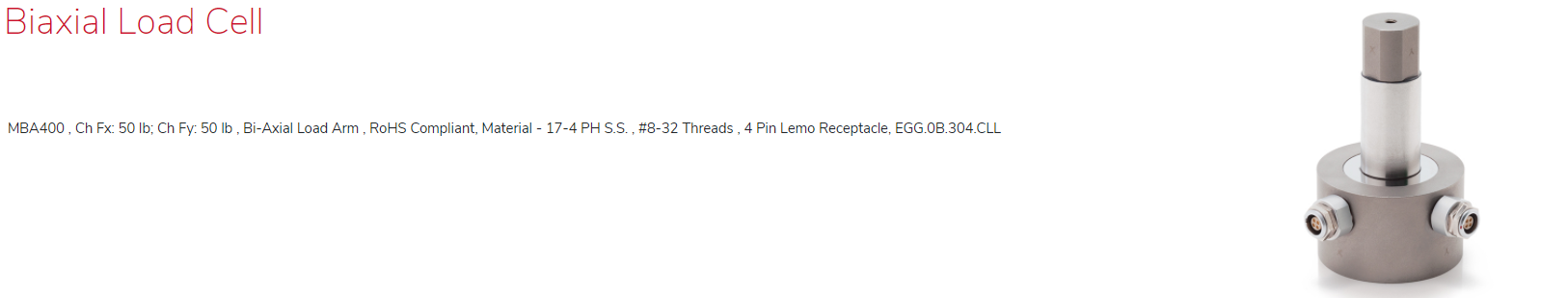

FUTEK MBA400 Biaxial Load Cell 이미지

MBA400 , Ch Fx: 50 lb; Ch Fy: 50 lb , Bi-Axial Load Arm , RoHS Compliant, Material - 17-4 PH S.S. , #8-32 Threads , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

MBA400 , Ch Fx: 50 lb; Ch Fy: 50 lb , Bi-Axial Load Arm , RoHS Compliant, Material - 17-4 PH S.S. , #8-32 Threads , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

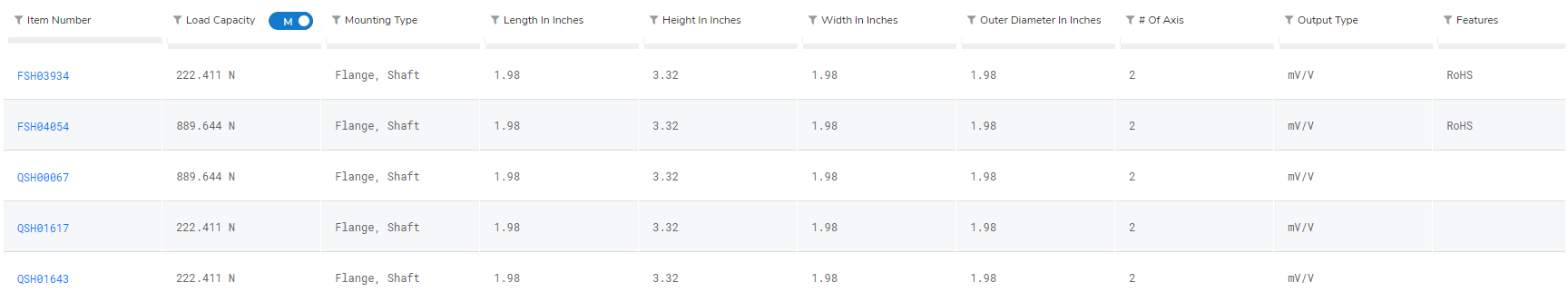

FSH03954

FSH04054

QSH00067

QSH01617

QSH01643

Features

  • Measures Fx and Fy loads
  • Ideal for high speed planar force measurements for automation systems
  • Ideal for embedded automotive and aircraft control stick force measurement

Description

The Multi-Component Bi-Axial Load Arm offers an excellent solution for measuring Fx and Fy Loads. The MBA400 is made from robust 17-4 Stainless Steel, weighs only 16 oz, and offers a compact desing.

The Multi-Component Bi Axial Load Arm has high accuracy with a Nonlinearity of ±.1%. The MBA400 can be modified or customized to meet your requirements . Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology

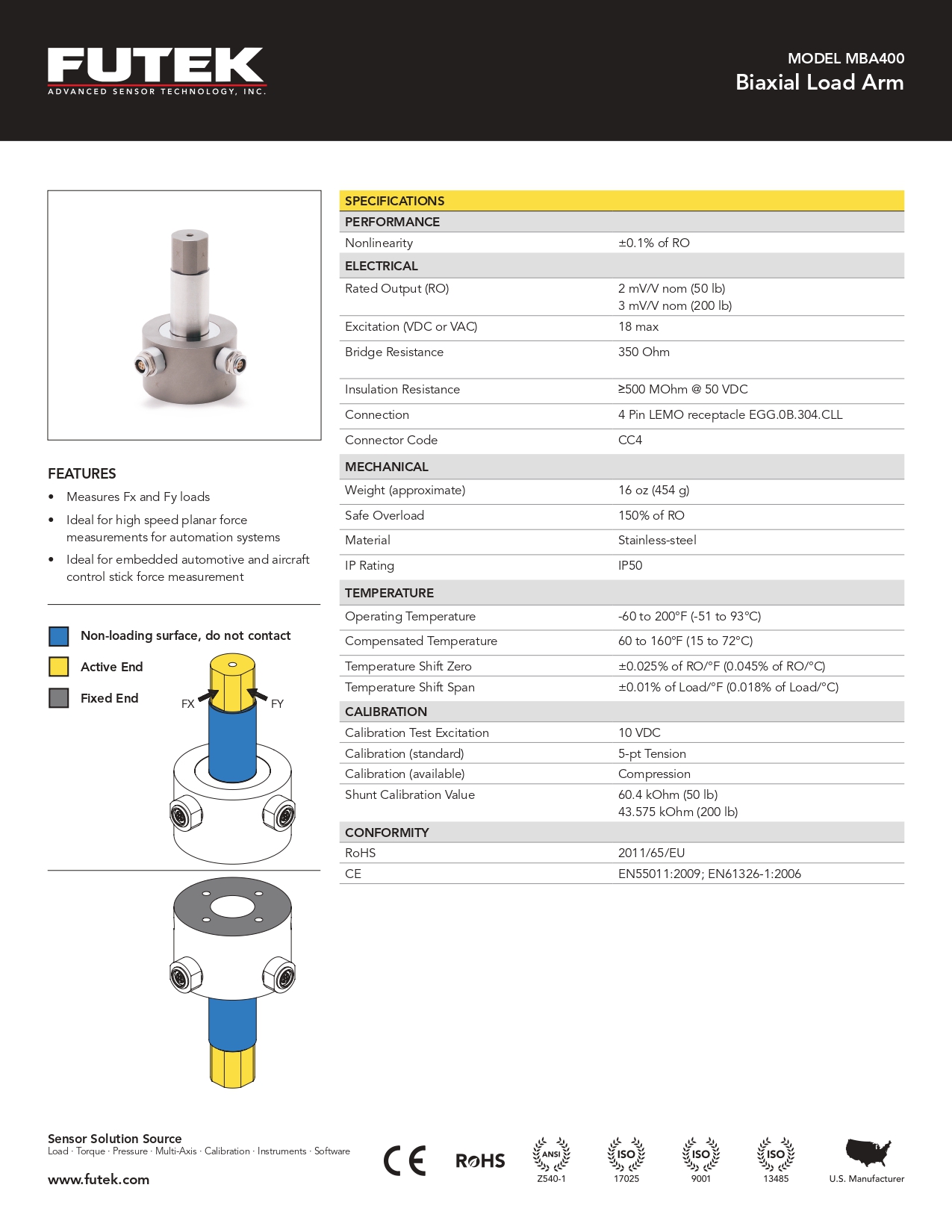

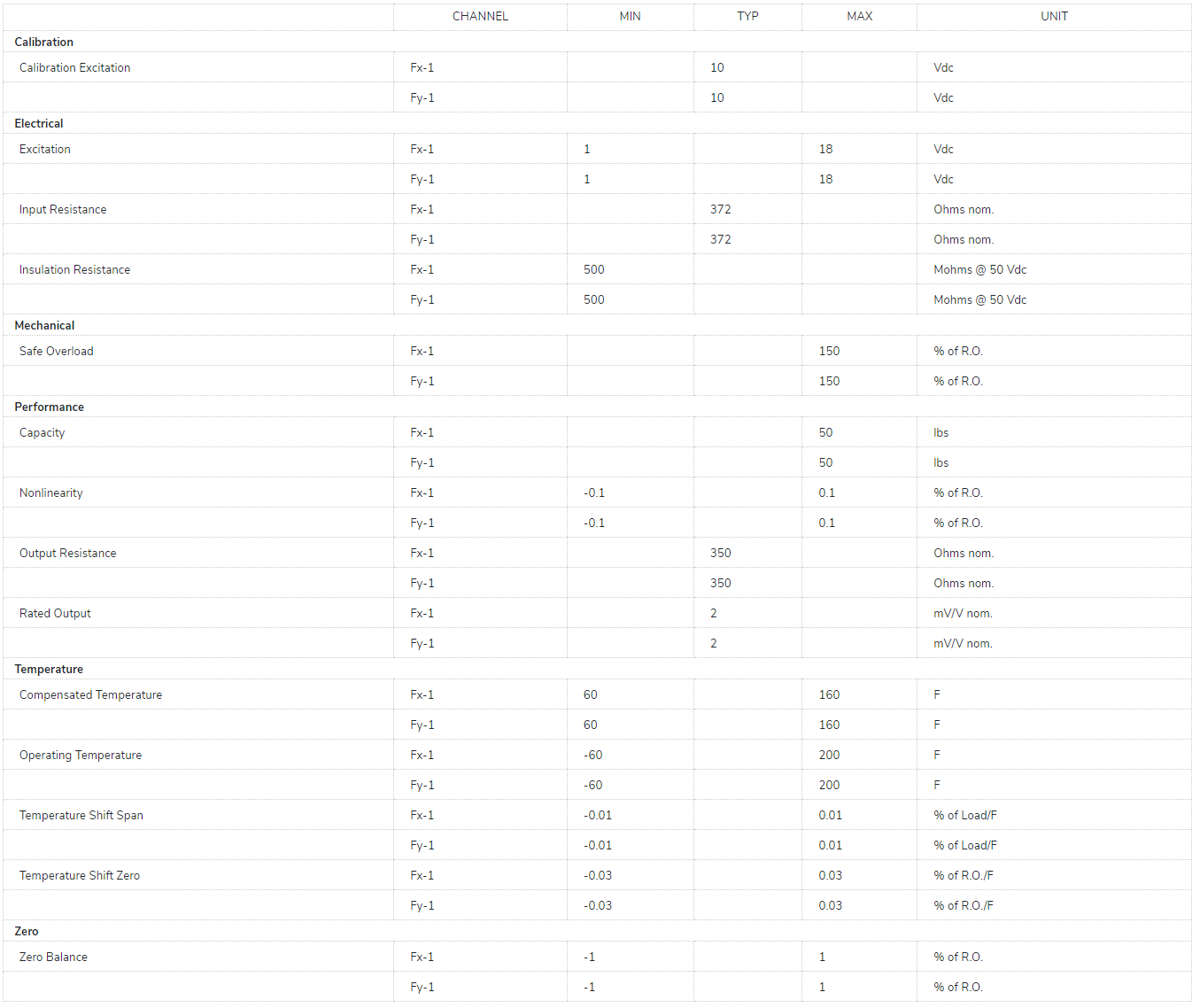

Specifications
