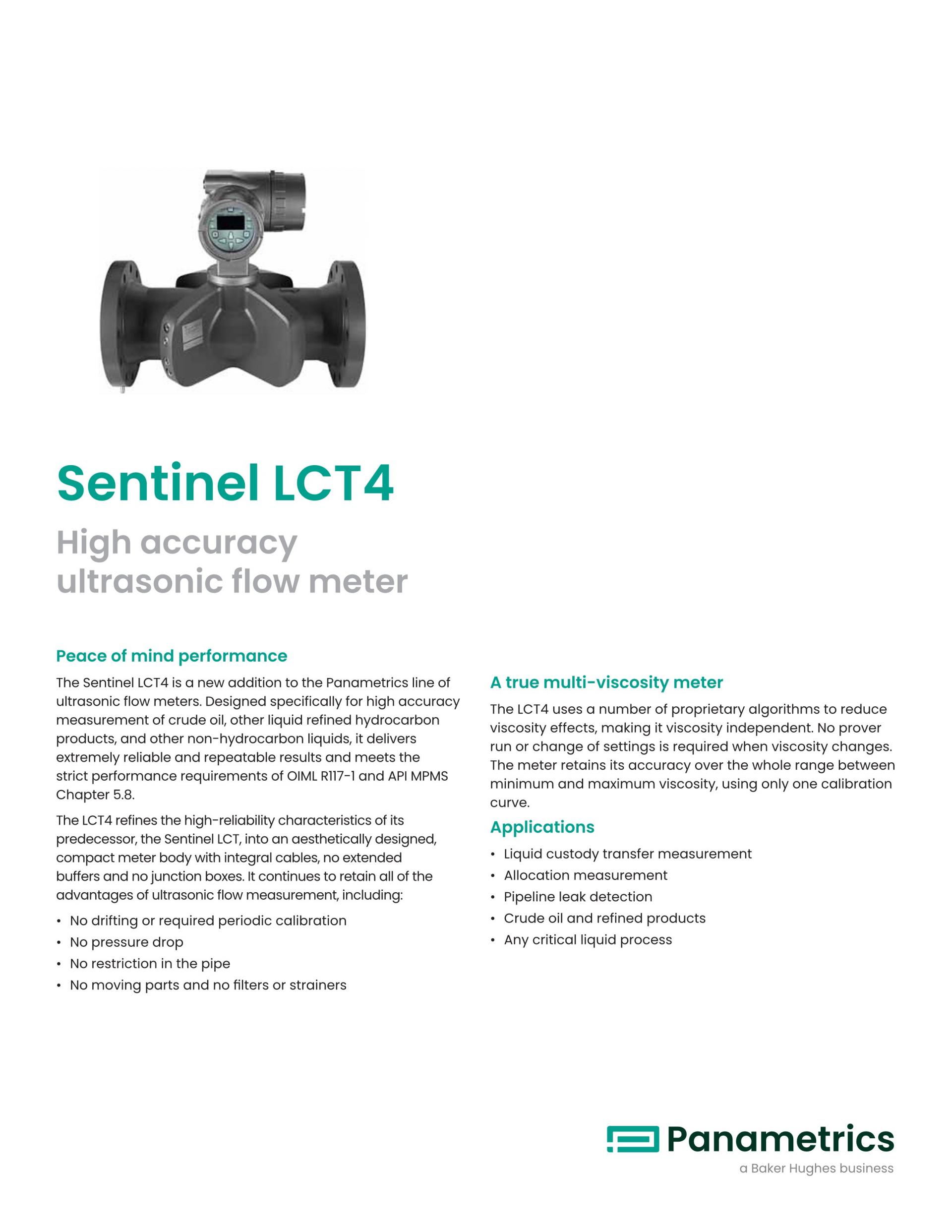

The Panametrics Sentinel LCT4 is designed specifically for high accuracy measurement of crude oil, other liquid refined hydrocarbon products, and other non-hydrocarbon liquids, it delivers extremely reliable and repeatable results and meets the strict performance requirements of OIML R117-1 and API MPMS Chapter 5.8.
| 원산지 | U.K |
|---|---|
| 제조사 | BAKER HUGHES |
| 브랜드 | PANAMETRICS |
| 무게 | 1kg |
The Panametrics Sentinel LCT4 is designed specifically for high accuracy measurement of crude oil, other liquid refined hydrocarbon products, and other non-hydrocarbon liquids, it delivers extremely reliable and repeatable results and meets the strict performance requirements of OIML R117-1 and API MPMS Chapter 5.8.

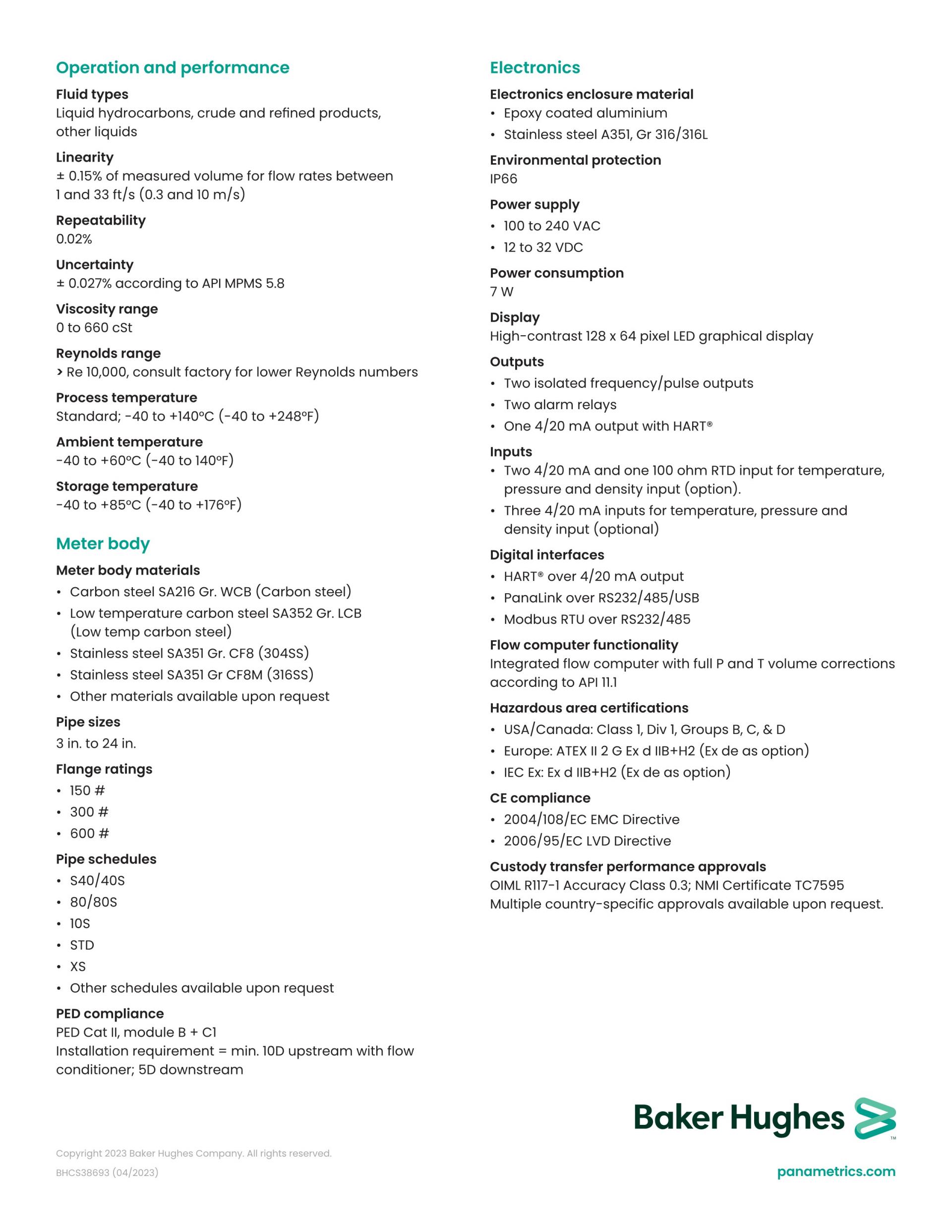

- 사양
- Linearity :
유량 비율에 대한 측정된 부피의 1 과 33 ft/s 사이의 ± 0.15% (0.3 and 10 m/s)
(± 0.15% of measured volume for flow rates between 1 and 33 ft/s (0.3 and 10 m/s) )
- 불확실정(Uncertainty) : API MPMS 5.8 에 따른 ± 0.027%
- 프로세스 온도 (Process Temperature): -40° ~ +140°C (-40° ~ +248°F) standard
- 주위 온도(Ambient Temperature): -40° ~ +60°C (-40° ~ 140°F)
- 저장(보존) 온도(Storage Temperature): -40° ~ +85°C (-40° ~ +176°F)
- 어플리케이션
- 액체 보관 전송 측정
- 할당 측정
- 파이프 라인 누출 감지
- 원유 및 정유 제품• 고온의 흐름
- 극저온 흐름
- 높은 정확도와 정밀도를 요구하는 모든 액체 공정
