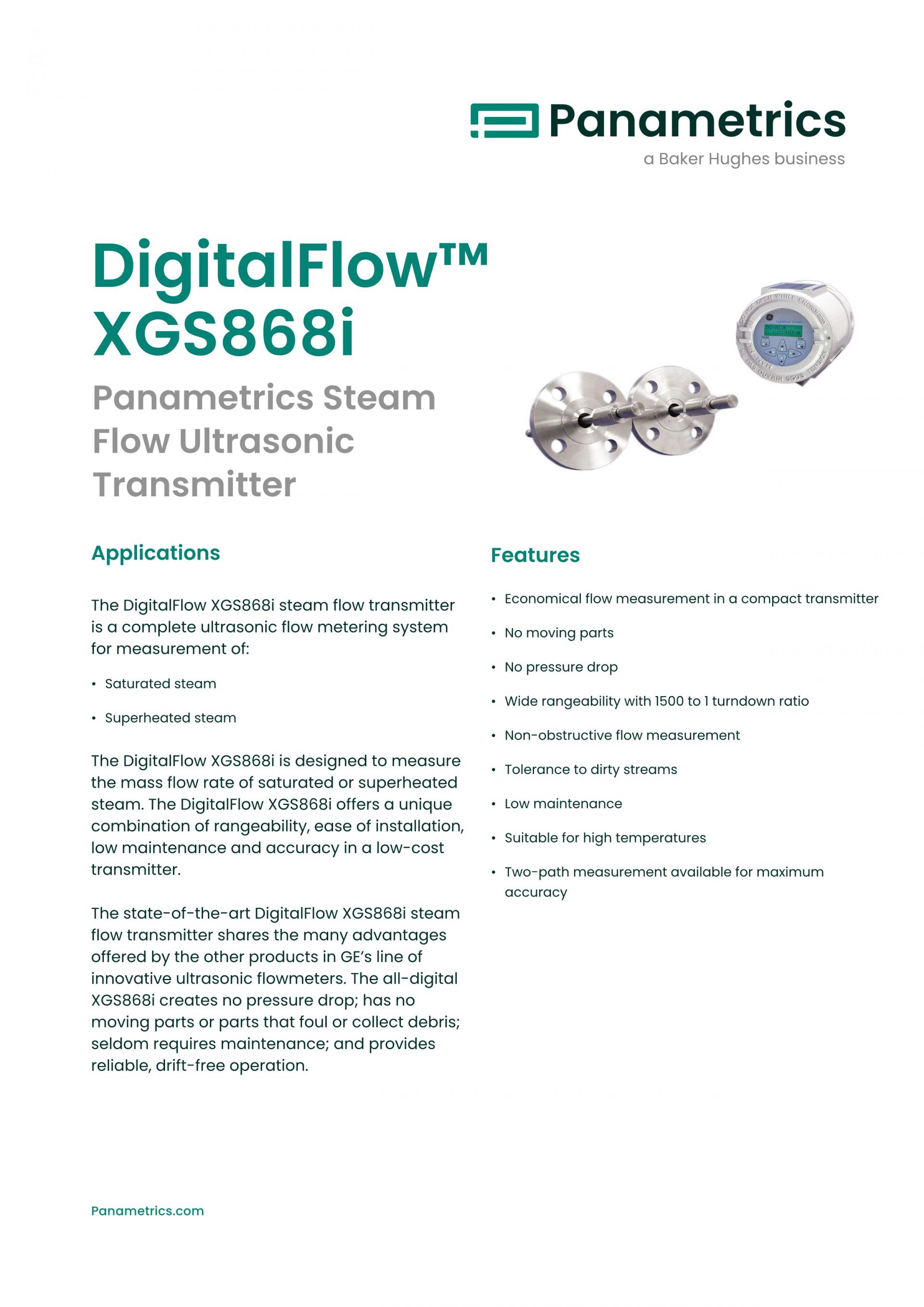

The DigitalFlow XGS868i steam flow transmitter is a complete ultrasonic flow metering system designed to measure the mass flow rate of saturated or superheated steam. The XGS868i offers a combination of rangeability, ease of installation, low maintenance and accuracy in a low-cost transmitter.
| 원산지 | U.K |
|---|---|
| 제조사 | BAKER HUGHES |
| 브랜드 | PANAMETRICS |
| 무게 | 1kg |
The DigitalFlow XGS868i steam flow transmitter is a complete ultrasonic flow metering system designed to measure the mass flow rate of saturated or superheated steam. The XGS868i offers a combination of rangeability, ease of installation, low maintenance and accuracy in a low-cost transmitter.

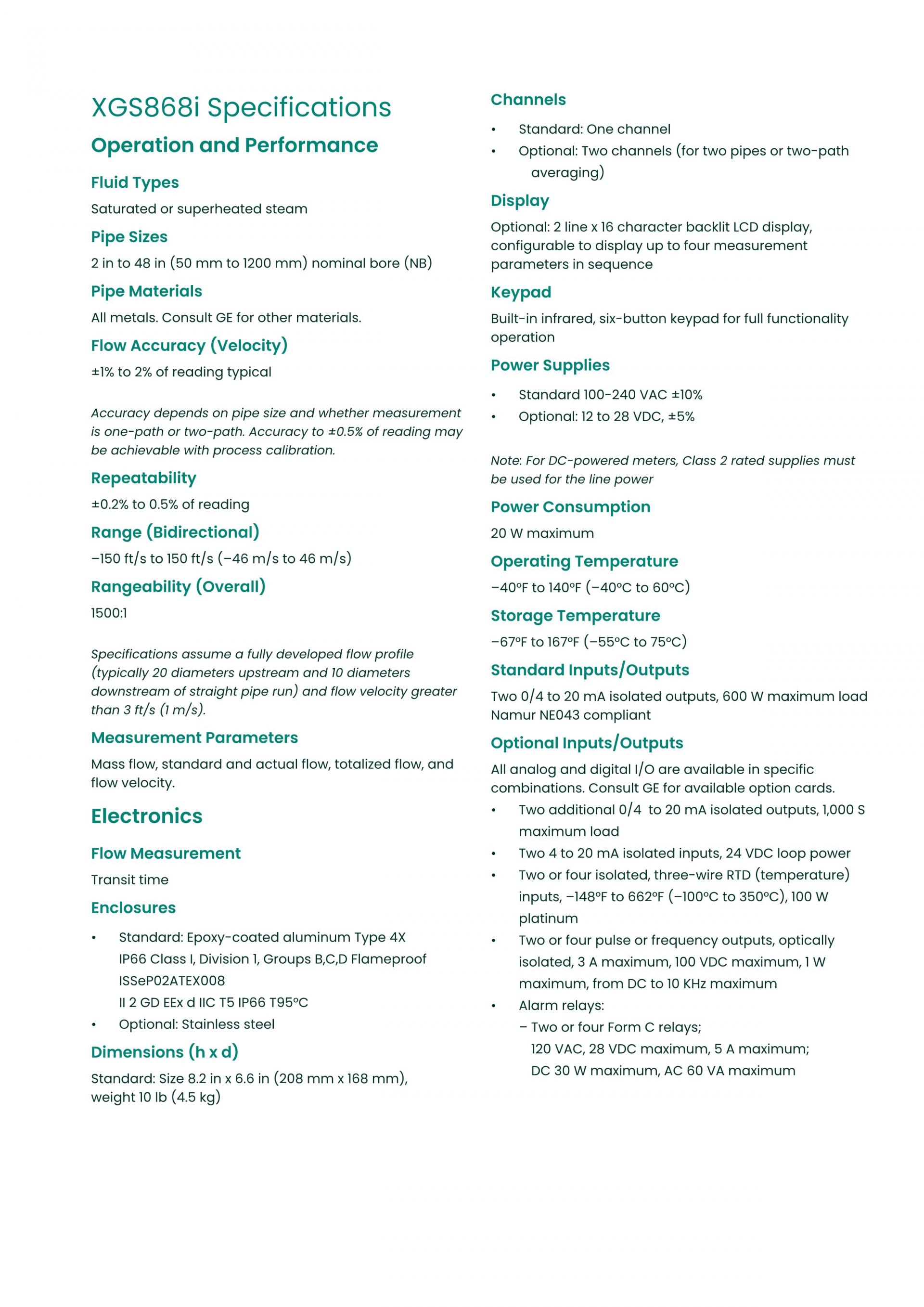

- 사양
- 유량 정확도(속도) : ±1% - 2%
- 범위(양방향) : –150 ft/s - 150 ft/s (–46 m/s - 46 m/s)
- 채널 : 표준 One channel 한개 채널 / 선택 사항 Two channels 두개 채널 (2 개 파이프 또는 두 개의 경로 평균)
- 표준 입력/출력 : 2개 0/4 - 20 mA 절연된 출력, 600 W 최대 부하
- 압력 범위 : 표준 0 psig - 2700 psig (1 bar - 187 bar) / 옵션: 3480 psig (240 bar) 최대
- 온도 범위 : 표준 –58°F - 302°F (–50C° - 150°C) / 옵션(종합) –310°F - 842°F (–190°C - 450°C)
- 어플리케이션
- 포화 증기
- 과열 증기
