Field calibration of pressure transmitter For calibration of pressure transmitters, accurate measurement of input and output values and calculation of error rate are required. The CA700 ensures reliable calibration with its function to accurately measure input and output values of pressure and current. Additionally its embedded calibration procedures enable users to perform certain calibration following the prescribed procedure. By connecting the external pressure sensor PM100 to the CA700, users can calibrate the pressure in the high pressure range.
| 원산지 | JAPAN |
|---|---|
| 제조사 | YOKOGAWA |
| 브랜드 | YOKOGAWA |
| 무게 | 1kg |
* PM100

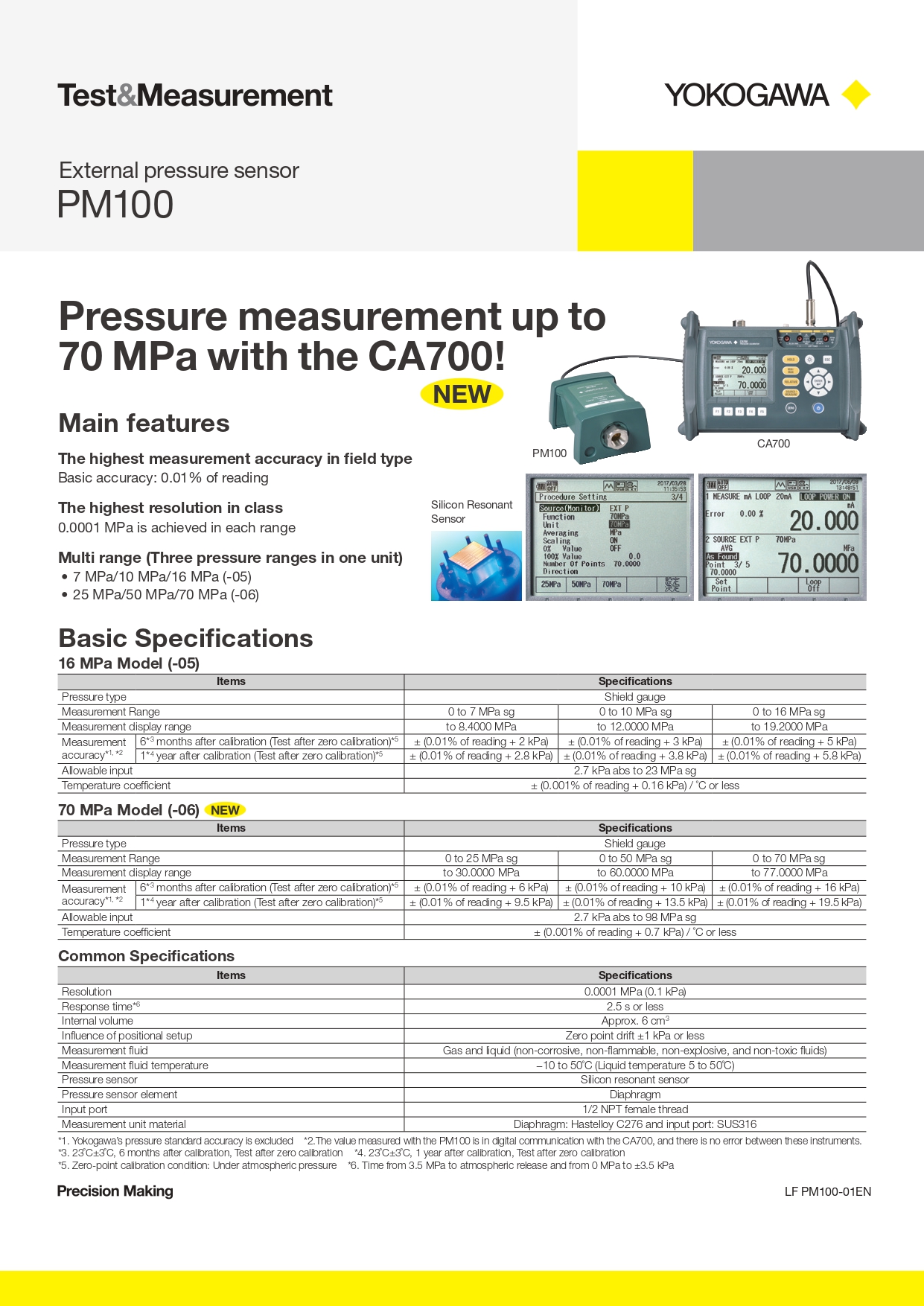

Specifications
| External Dimensions | 112 x 75 x 148 mm |
| Weight | Approx. 1.2kg |
Applications

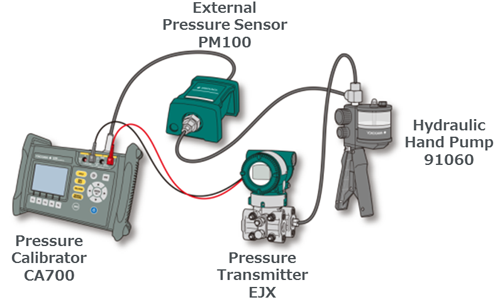

Field calibration of pressure transmitter
For calibration of pressure transmitters, accurate measurement of input and output values and calculation of error rate are required.
The CA700 ensures reliable calibration with its function to accurately measure input and output values of pressure and current.
Additionally its embedded calibration procedures enable users to perform certain calibration following the prescribed procedure.
By connecting the external pressure sensor PM100 to the CA700, users can calibrate the pressure in the high pressure range.

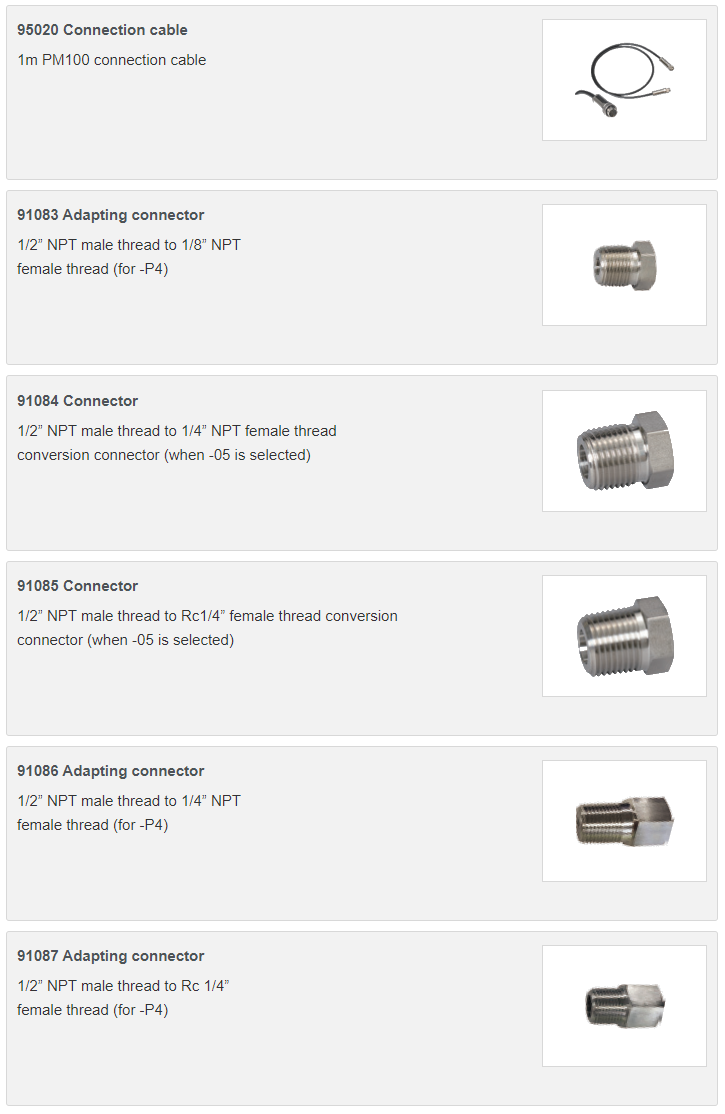

Accessories
