TEKHNE Corporation, a Japanese manufacturer, experienced dew point measurement over 30years,
| 원산지 | JAPAN |
|---|---|
| 제조사 | TEKHNE |
| 브랜드 | TEKHNE |
| 무게 | 1kg |

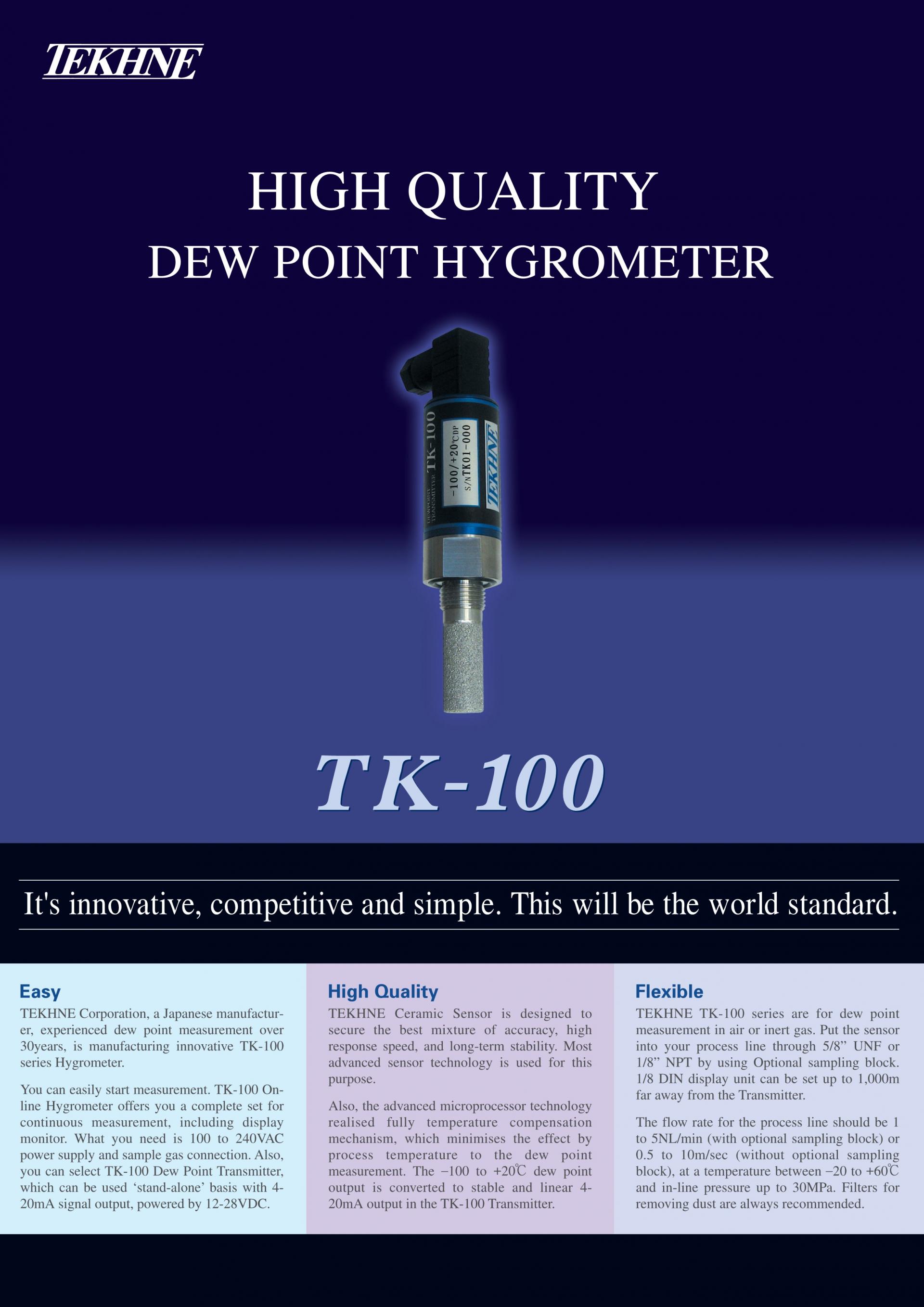

Easy
TEKHNE Corporation, a Japanese manufacturer, experienced dew point measurement over 30years,
is manufacturing innovative TK-100 series Hygrometer.
You can easily start measurement. TK-100 On-line Hygrometer offers you a complete set for continuous
measurement, including display monitor.
What you need is 100 to 240VAC power supply and sample gas connection.
Also, you can select TK-100 Dew Point Transmitter, which can be used 'stand-alone' basis with 4-20mA signal
output, powered by 12-28VDC.
High Quality
TEKHNE Ceramic Sensor is designed to secure the best mixture of accuracy, high response speed,
and long-term stability. Most advanced sensor technology is used for this purpose.
Also, the advanced microprocessor technology realised fully temperature compensation mechanism,
which minimises the effect by process temperature to the dew point measurement.
The -100 to +20℃ dew point output is converted to stable and linear 4-20mA output in the TK-100 Transmitter.
Flexible
TEKHNE TK-100 series are for dew point measurement in air or inert gas.
Put the sensor into your process line through 5/8" UNF or 1/8" NPT by using Optional sampling block.
1/8 DIN display unit can be set up to 1,000m far away from the Transmitter.
The flow rate for the process line should be 1 to 5NL/min (with optional sampling block) or 0.5 to 10m/sec (without optional sampling block), at a temperature between -20 to +60℃ and in-line pressure up to 30MPa. Filters for removing dust are always recommended.

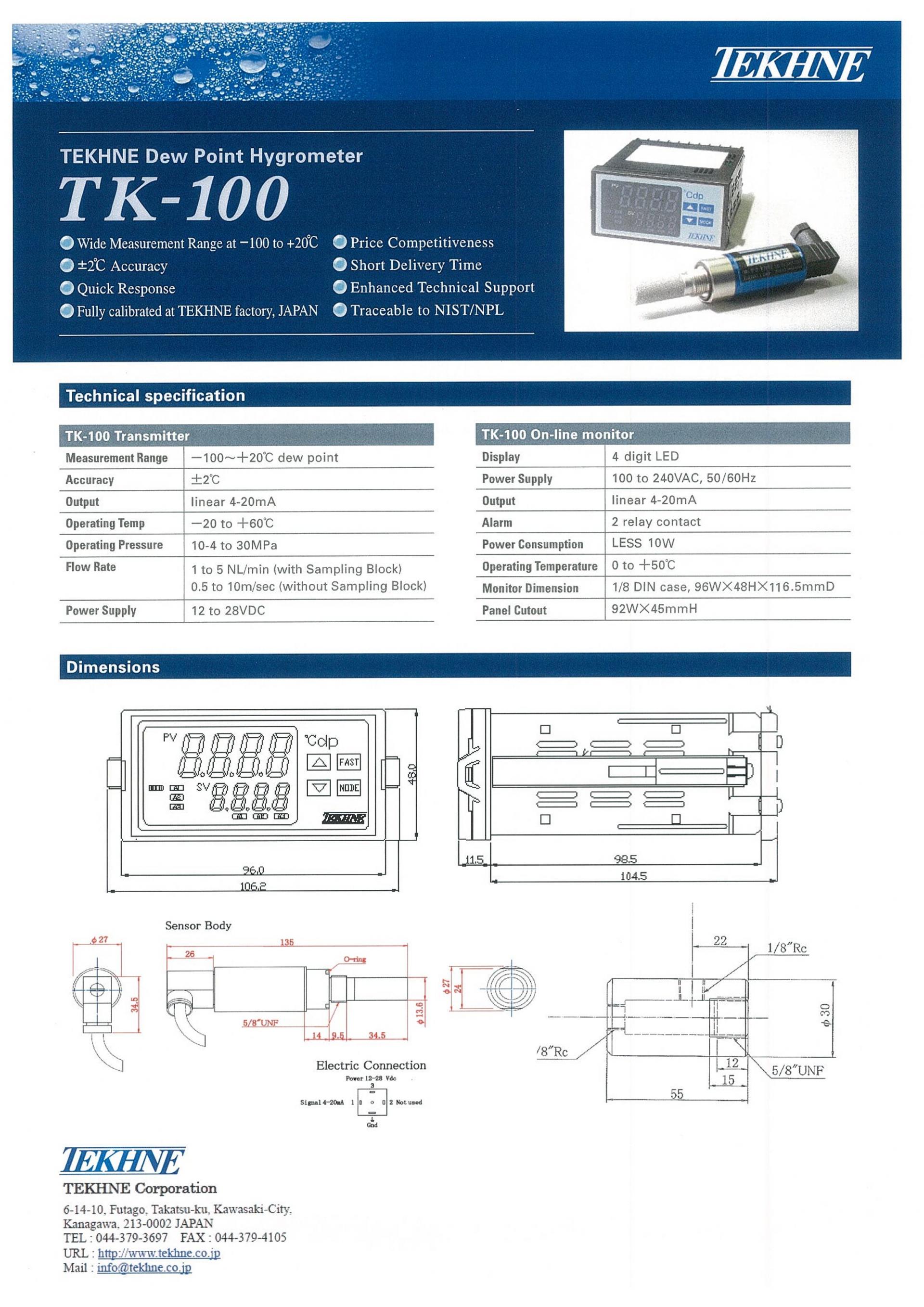

Specifications
Measurement Range
- -100 to +20°Cdp
Accuracy
- ±2 °Cdp
Output
- linear 4-20mA
Operating Temp
- -20 to +60°C
Operating Pressure
- 10-4Pa to 30MPa
Flow Rate
- 1 to 10 NL/min(with Sampling Block) 0.5 to 10m/sec (without Sampling Block)
Power Supply
- 12 to 28VDC
