Current clamp-on probe accessories for digital power meters, power analyzers, and digital multimeters AC 400 Arms (600 A Peak) / AC 1000 Arms (1400 A Peak)
| 원산지 | JAPAN |
|---|---|
| 제조사 | YOKOGAWA |
| 브랜드 | YOKOGAWA |
| 무게 | 1kg |

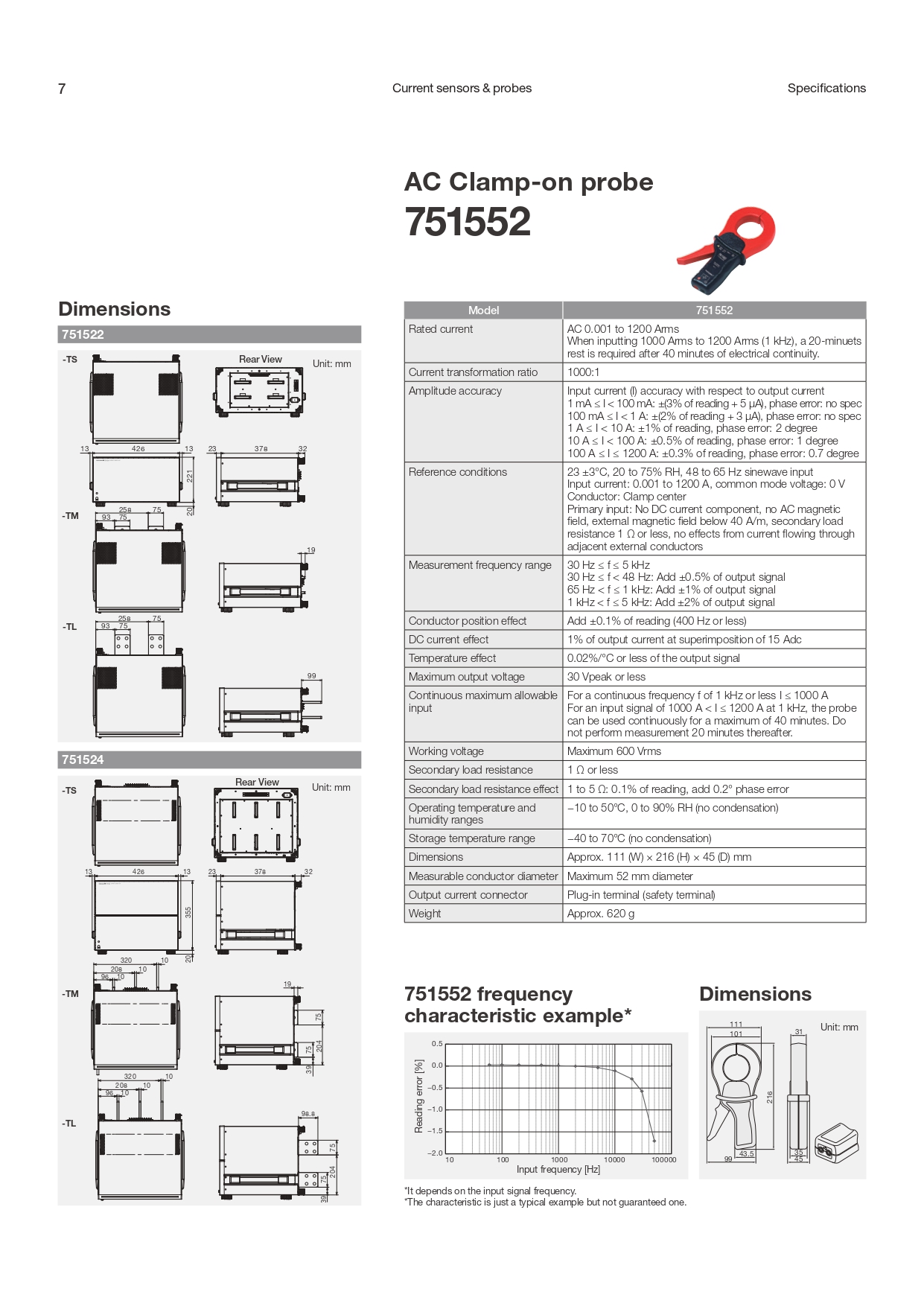

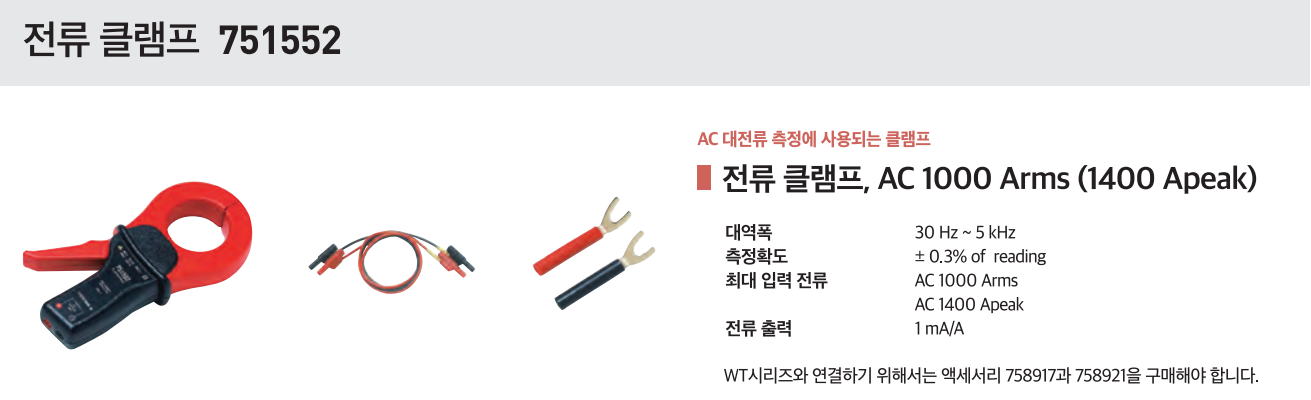

751552
Current clamp-on probe accessories for digital power meters, power analyzers, and digital multimeters
AC 400 Arms (600 A Peak) / AC 1000 Arms (1400 A Peak)
Yokogawa's current clamp-on probes can be used for current power measurements on large-current equipment in excess of a power meter's rated range. The clamp-on design makes it possible to take measurements in tight spots, and to take measurements with live wires in already-installed equipment. Two models are available: 96001, which covers a wide frequency range; and 751552, which can be used for high-precision measurements. Model 96001 provides voltage output, so it can be used with waveform measuring instruments and digital
- Wide dynamic range: 0.001 Arms to 1000 Arms (AC): Max. 1400 Apk (AC)
- Wide measurement frequency range: 30 Hz to 5 kHz (±2%)
- Highly-precise basic accuracy: ±0.3% of rdg
- Phase error: 0.7 deg (50/60 Hz)
- Current output model: 1 mA/A
