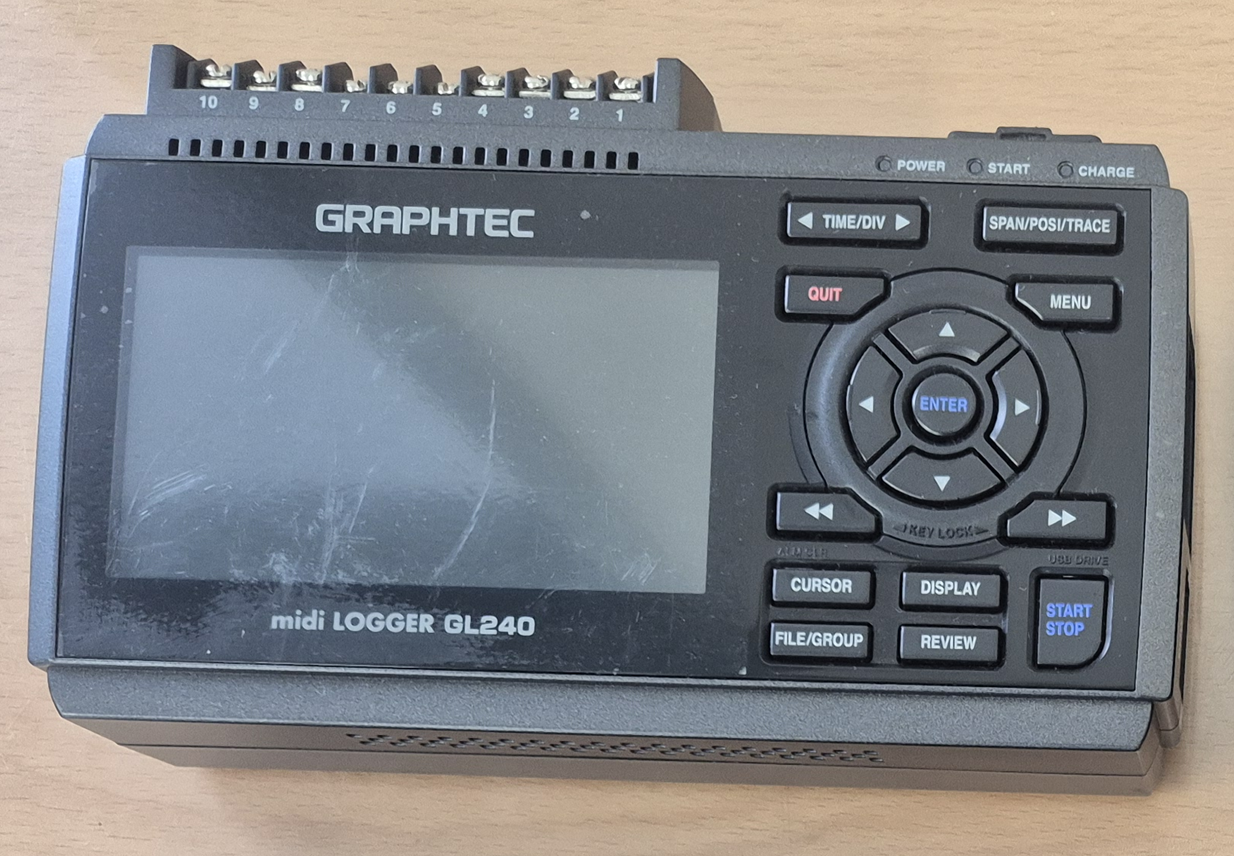

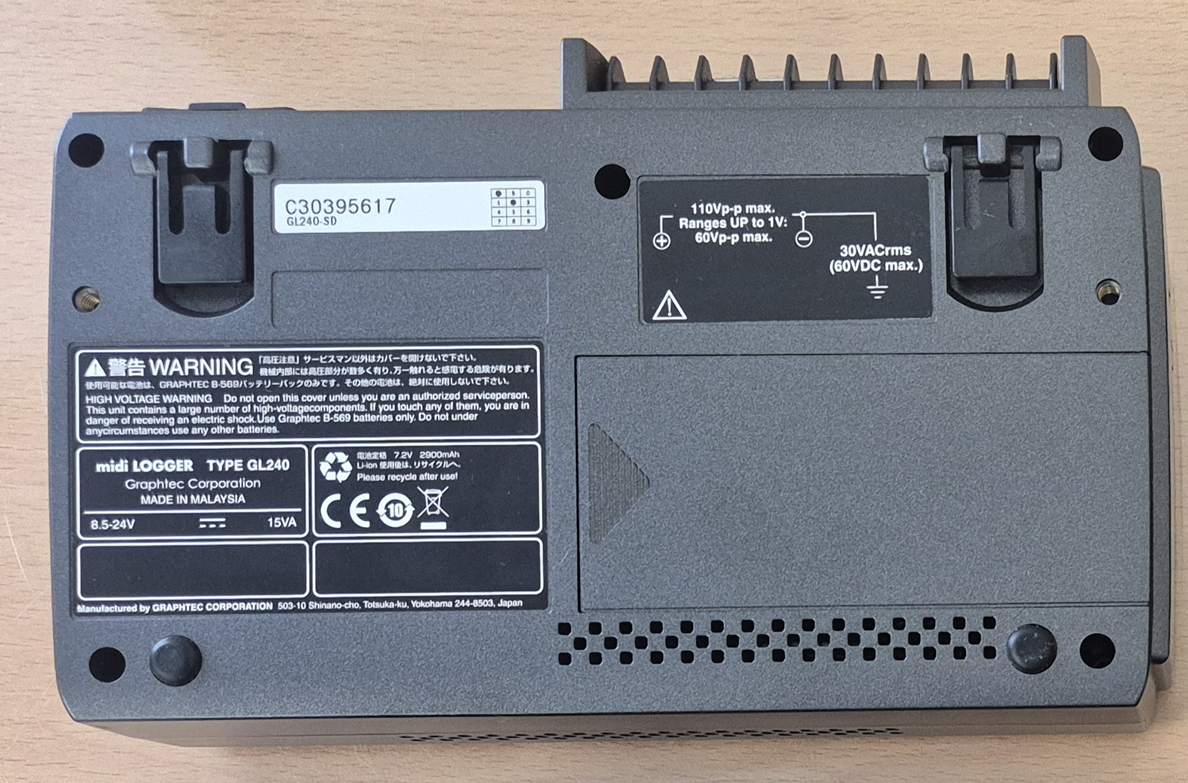

[중고] GRAPHTEC GL240 데이터로거 (10ch) 그라프텍 midi logger

전압

20mV~100V, 1-5V/F.S.

온도

열전대 : R, S, B, K, E, T, J, N, W (WRe5-26)

습도

0~100% (옵션 B-530 필요)

Pulse

4ch

Logic

4ch

샘플링 속도

10ms

20ms

50ms

100ms

사용 가능 ch 수

1

2

5

10

측정 대상

전압

●

●

●

●

온도

-

-

-

●

샘플링 속도

10ms

50ms

100ms

200ms

500ms

1s

10s

GBD 형식

41일

88일

103일

207일

365일 이상

365일 이상

365일 이상

CSV 형식

3일

11일

16일

36일

91일

182일

365일 이상

Model number

Description

B-568

GL Wireless LAN unit
>> 무선 LAN 유닛을 사용하여 무선 접속 실현
>> PC나 스마트 장비의 iOS/Android를 이용하여 무선 커뮤니케이션
>> 장착위치 : SD CARD2 슬롯에 장착
※ 무선 LAN 장치를 장착하면 SD CARD2 슬롯에 SD 메모리 카드를
장착 할 수 없습니다.
>> PC 없이 GL100-WL 모니터링
※ GL100-WL 접속 대수 : GL840에 장착 시 5대, GL240에 장착 시 1대
>> 통신거리 : 약 40m (장애물이나 주변 환경에 따라 달라집니다.)
>> 무선 LAN 규격 : 표준 : IEEE802.11b / g / n

B-569

배터리팩
>> GL240에 1개, GL840에 2개 까지 장착 가능
>> Capacity: 7.2 Volts/ 2900 mAh / 20.9Wh
>> Battery Type: Lithium Secondary Battery
>> Running Time: 3 Hours to 10 Hours
>> Charging Method: Mount in the Main Unit
>> Operation Environment: 15°C to 40°C

B-514

DC 드라이브 케이블
>> 2 Meter Cable

B-513

로직/알람 케이블
>> (4) Logic/Pulse Inputs
>> (4) Alarm Outputs
>> Cable Length: 2 Meters

B-530

습도센서
>> Measurement Range: 0 to 100% RH and -25°C to 80°C
>> 3% RH Accuracy
>> 15 Seconds Response Time to 90%
>> 0 to 1 Volt DC Output
>> Includes 3 Meter Cable Length

Number of analog input channels

10 channels

External input/
output *1

Input *2

Trigger or Sampling (1 channel), Logic/Pulse (4 channels)

Output *3

Alarm (4 channels)

Sampling interval

10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal

Time scale of waveform display

1sec. to 24 hour /division

Trigger,
Alarm function

Trigger action

Start or stop capturing data by the trigger

Repeat action

Off, On (auto rearmed)

Trigger source

Start: Off, Measured signal, Alarm, External, Clock, Week or Time
Stop: Off, Measured signal, Alarm, External, Clock, Week or Time

Condition Setting

Combination: OR or AND
Analog signal: Rising (High), Falling (Low), Window-in, Window-out
Logic signal: Pattern (combination of each input signal in high or low)
Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out

Alarm output

Outputs a signal when alarm condition occurs in the input signal *5

Pulse input
function

Rotation count
(RPM)

Counts the number of pulses per sampling interval and converts to rpm
(rotations per minute), Number of pulses for one rotation may be set to
50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale)

Accumulating
count

Accumulates the number of pulses from the start of measurement
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)

Instant count

Counts the number of pulses per sampling interval
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)

Calculation
function

Between channels

Addition, Subtraction, Multiplication, and Division for analog input

Statistical

Select two calculations from Average, Peak, Maximum, Minimum, RMS

Search function

Search for analog signal levels, values of logic or pulse or alarm point
in captured data

Interface to PC

USB (Hi-speed), WLAN (using B-568 option)

Storage
device

Media

SD memory card (Support SDHC, up to 32 GB), supports 2 slots *6

Saved contents

Captured data, Setting conditions, Screen copy

Capturing mode

Mode: Normal, Ring, Relay
Ring: Saves most recent data (Number of captured data: 1000 to 2000000 points) *7
Relay: Saves data to multiple files without losing data until data capturing is stopped

Replay Data

Replays captured data that was saved in the GL240 (in BGD or CSV format)

Scaling (Engineering unit) function

Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain)

Action during data capture

• Displaying parst data (using dual display mode (Current + Past data))
• Hot-swapping the SD memory card
• Saving data in between cursors

Display

Size

4.3-inch TFT color LCD (WQVGA: 480 x 272 dots)

Language

English, French, German, Chinese, Korean, Russian, Spanish, Japanese

Information *8

Waveform in Y-T with digital values, Waveform only, Digital value, Digital values
and statistics values

Operating environment

0 to 45 ºC, 5 to 85 % RH (non condensed)
(When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)

Power source

AC adapter

100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)

DC power

8.5 to 24 V DC (DC drive cable (option B-514) is required)

Battery pack

Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh)

Power consumption *9

Max. 36 VA

External dimensions (W x D x H)

Approx.188 x 117 x 42 mm (Excluding projections)

Weight *10

500 g
